Collection: Gullies & Headwalls

Gullies collect surface water from yards and roads and pass it into the drain; headwalls finish a pipe where it discharges into a ditch or watercourse. Choose a gully by where it sits and the grate load class, and a headwall by the pipe size.

Read the buying guide and questions
  • Plastic yard gully, 300 x 600mm with a 110mm outlet, and a galvanised 300mm silt bucket

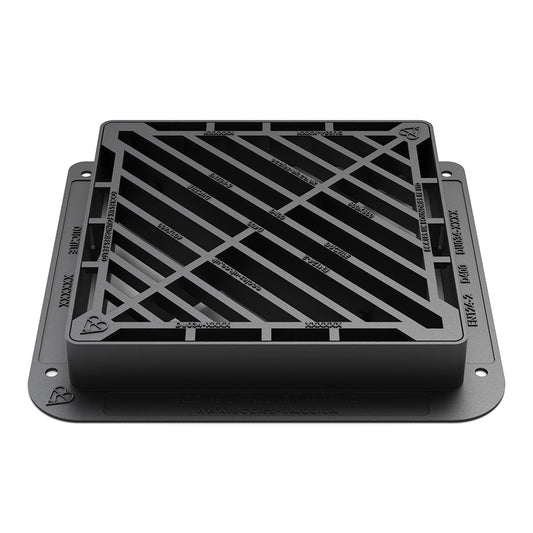

  • Gully grates: C250 300 x 300mm yard grates and D400 420 x 420mm and 600 x 600mm road grates
  • JKH glass reinforced cement (GRC) headwalls: small 80 to 190mm knock-out and large 300mm cut-out, with hinged galvanised grates
  • JKH GRC silt trap inlets, curved back or square, for pipes up to 360mm outside diameter

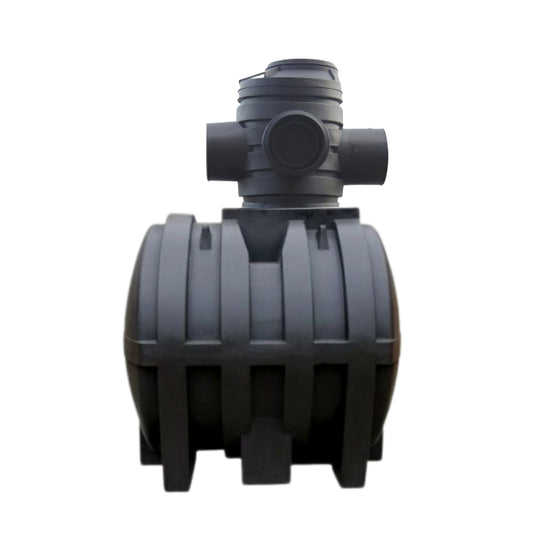

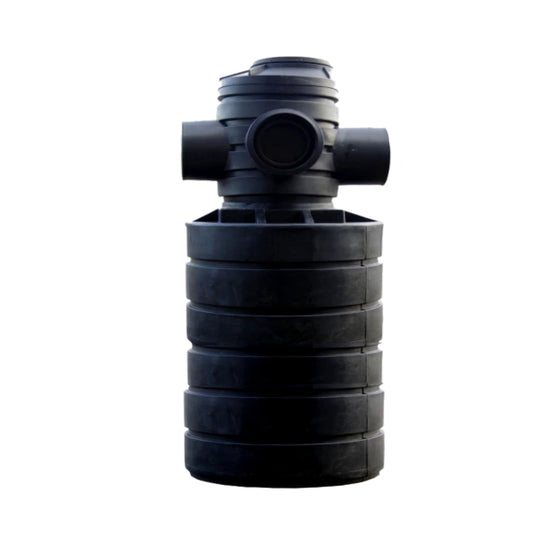

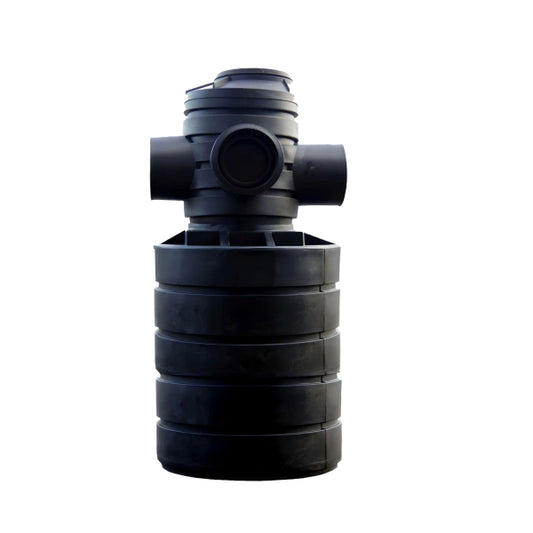

  • Silt traps: Turtle SiltBlok and Gulliblok, and Oaklands Silt Guardian 1,000 to 5,500 litres

Shop by type

How to clear a blocked gully

  1. Wear gloves, boots and eye protection.
  2. Find the blocked gully: look for standing water or debris round the grate.
  3. Clear debris off the grate and lift it out. If it is stiff or rusted in, ease it up with a bar.
  4. Lift out the silt bucket, if fitted, and empty it. Scoop the silt, leaves and debris out of the gully.
  5. If the water still won't drain, the blockage is further down the pipe. Feed drain rods into the outlet and turn them clockwise to push it through.
  6. Rinse the gully and outlet with a hose or pressure washer.
  7. Pour in a bucket of water to check it drains freely, then refit the bucket and grate.

If it keeps blocking, or the rods won't clear it, have the drain jetted by a drainage contractor.

Questions about gullies & headwalls

What is the difference between a gully and a channel drain?

A gully collects water at one point under a grate, with a sump that holds back silt. A channel drain collects water along a line. Yards often use both.

What is a headwall for?

A headwall holds the end of a pipe where it discharges into a ditch or watercourse. It stops the bank eroding around the outfall and supports the pipe end.

What load class gully grate do I need?

C250 suits yards and kerbside areas with slow vehicles; D400 suits roads and lorry routes. Not sure? Our free drawing take-off lists the right grate for each gully.

How do I stop a gully blocking again?

Empty the silt bucket and clear the grate regularly, more often in autumn. Keep fat, grease, wipes and litter out of the drain. Where a lot of silt reaches the drain, fit a silt trap or catchpit to catch it. Regular jetting keeps the pipes clear.
