Collection: Twinwall Pipe

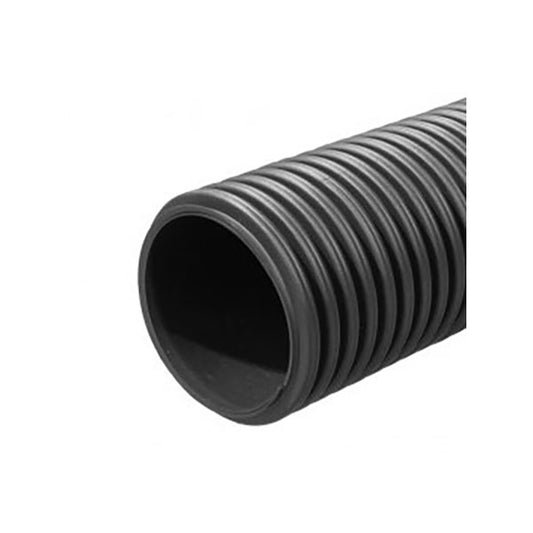

Twinwall is rigid HDPE drainage pipe with a corrugated outer wall for strength and a smooth inner wall for flow. Groundworkers and contractors use it for surface water and land drainage. Choose perforated pipe to collect water from the ground or unperforated to carry it away, then pick the diameter and joint.

Read the buying guide and questions
  • Perforated pipe collects water; unperforated (carrier) pipe moves it
  • Diameters 150mm to 1050mm; perforated in 150mm to 600mm
  • 6m lengths, with 600mm also in 1m and 1.5m
  • Plain-end pipe joins with couplers and sealing rings; 750mm and 1050mm are socketed
  • Bends, Y and T junctions, sewer reducers and rocker pipes

How to choose twinwall pipe

1. Perforated or unperforated

Perforated twinwall has small slots in the corrugations, so it collects water from the ground around it. Use it for filter drains, field drains and sports pitches, laid in clean stone. It comes in 150mm, 225mm, 300mm, 450mm and 600mm.

Unperforated (carrier) twinwall is solid, so it carries water without collecting or losing any. Use it to take water to a ditch, watercourse, soakaway or attenuation tank. It comes in 150mm to 1050mm.

This range is for surface water and land drainage. For foul drainage, use sewer pipe.

2. Diameter and length

The diameter comes from the drainage design, based on the area drained and the fall. Pipes come in 6m lengths. The 600mm unperforated pipe also comes in 1m and 1.5m lengths for short runs and tight sites.

3. Joints

Plain-end pipe joins with a twinwall coupler and a sealing ring on each pipe end. Couplers come in 150mm, 225mm, 300mm, 450mm, 600mm, 750mm and 900mm; sealing rings in 150mm to 600mm. Use pipe lubricant on the seals to make the joint easier to push home. The 750mm and 1050mm pipes are socketed, and the 750mm comes with its seal.

4. Fittings

  • Bends: 15°, 30°, 45° and 90°, from 150mm up to 600mm depending on the angle.
  • Junctions: 45° Y junctions from 150mm to 450mm, a 150mm 90° T junction, and unequal Y and T junctions in 300 x 150mm and 300 x 225mm.
  • Twinwall to sewer: reducing Y and T junctions connect 225mm twinwall to 110mm or 160mm sewer pipe.
  • Rocker pipes: 150mm to 450mm, for flexible connections into inspection chambers.

Twinwall or land drain coil?

For garden and field drains, flexible land drainage coil is lighter and quicker to lay. Twinwall suits bigger flows and jobs where a rigid pipe is specified.

Send your drawing for a free drawing take-off and we'll price the pipe, fittings and seals together.

Questions about twinwall pipe

What is the difference between perforated and unperforated twinwall pipe?

Perforated twinwall has small slots in its corrugations, so it collects water from the surrounding ground. It is used for filter drains and field or pitch drainage. Unperforated twinwall is solid, so it carries water from one point to another without collecting or losing any, for example to a ditch, watercourse or attenuation tank.

What sizes does twinwall pipe come in?

Our twinwall runs from 150mm to 1050mm diameter. Perforated pipe comes in 150mm, 225mm, 300mm, 450mm and 600mm. Unperforated pipe comes in 150mm, 225mm, 300mm, 375mm, 450mm, 600mm, 750mm, 900mm and 1050mm. The standard length is 6m, and 600mm unperforated is also sold in 1m and 1.5m lengths.

How do you join twinwall pipe?

Plain-end twinwall joins with a twinwall coupler. Fit a sealing ring on each pipe end, coat the seals with pipe lubricant, then push both pipes into the coupler for a watertight joint. Sealing rings come in 150mm to 600mm; check a coupler is listed for your size. The 750mm and 1050mm pipes are socketed, so the next pipe pushes into the socket.

Can twinwall pipe connect to 110mm or 160mm sewer pipe?

Yes. Twinwall to sewer reducing junctions connect 225mm twinwall to 110mm or 160mm sewer pipe. They come as a 45° Y junction or a 90° T junction, in 225 x 110mm and 225 x 160mm. Use them where a smaller branch, such as a gully or downpipe connection, joins a twinwall carrier drain.

Is twinwall pipe the same as land drainage coil?

No. Twinwall is rigid pipe sold in straight lengths, in larger diameters from 150mm to 1050mm, for bigger flows and specified drainage runs. Land drainage coil is flexible pipe sold in rolls, which is lighter and quicker to lay for garden and field drains. Both come perforated, to collect water, or unperforated, to carry it.

What is twinwall pipe made of?

Twinwall is made from high-density polyethylene (HDPE). It has a corrugated outer wall that gives strength against ground and traffic loads, and a smooth inner wall that lets water flow freely. It is much lighter than concrete or clay pipe of the same size and comes in 6m lengths, so there are fewer joints to make.

What is a twinwall rocker pipe?

A rocker pipe is a short length of pipe fitted where a drain enters an inspection chamber or other structure. Its joint close to the chamber wall lets the pipe flex if the chamber and the ground around it settle differently, which helps stop connections cracking. Twinwall rocker pipes come in 150mm, 225mm, 300mm and 450mm.
