Unperforated Land Drainage Pipes

Unperforated drainage pipes (also known as carrier drains) provide a cost-effective solution for most commercial, industrial and agricultural applications.

Unlike  , this type of pipework is solid and has no holes in its corrugations. This makes it useful for removing excess surface water in fields and gardens, before channelling it to a suitable collection point.

To find out more about the unperforated drainage pipes we supply at Cotterill Civils, get in touch with the team today.

A choice of unperforated drainage pipes

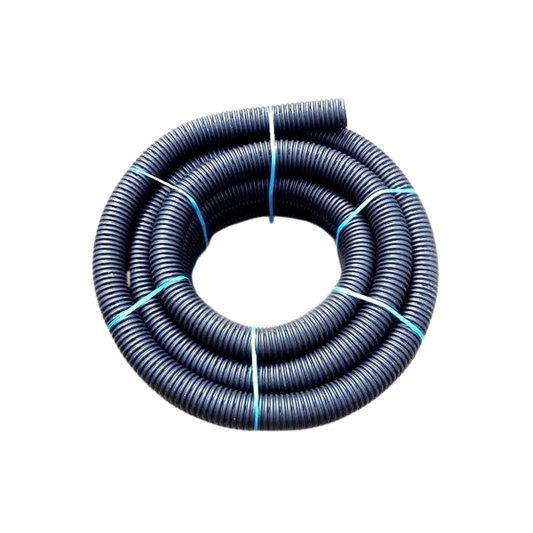

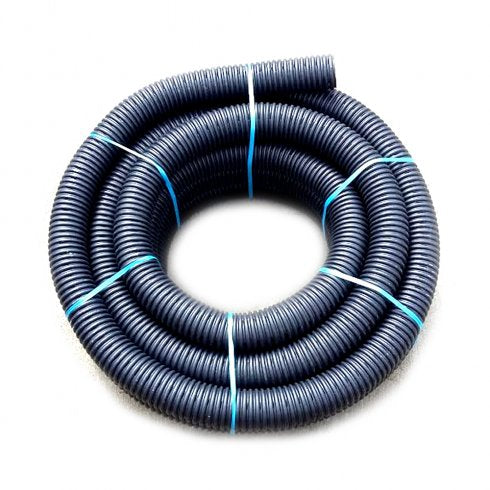

Here at Cotterill Civils, we provide unperforated drainage pipes in 50 and 100m lengths and diameters of 80, 100 and 160mm.

These are made from high-density polyethylene and are corrugated on the outside, which means they benefit from high strength.

Whilst unperforated land drain pipes are ideal for attenuation features where water needs draining to a designated discharge point, they’re also suitable for soakaway systems – directing the soakaway to a natural water course.

High-quality unperforated Twinwall surface water pipes are available to purchase via our website, too. These are not only suitable for use on almost all soil conditions, but they’re easy to handle, quick to install and can be easily cut to size on site.

Order unperforated drainage pipes today

Be sure to browse our collection in full and find the perfect unperforated drainage pipe for your project.

Click through for a detailed description and more about the product specifications. Once you’ve identified the pipework that best suits your requirements, simply add it to your online basket and proceed to the checkout.

Our team will process your order as soon as payment has been received and we’ll parcel your unperforated drainage products ready for dispatch.

Get in touch

Got a question about unperforated drainage pipes?

The team at Cotterill Civils is always on hand to help and will gladly share our knowledge and expertise.

Either give us a call on 0121 351 3230 or drop us an email at enquiries@cotterillcivils.co.uk, and we’ll get back to you as soon as possible.

4 products

Filter and sort

Filter and sort

4 of 4 products

Product type
Pipe Type

4 products

Frequently Asked Questions

What is the difference between a perforated and unperforated pipe?

Perforated and unperforated pipes both have their uses.

For example, perforated drainage pipes are used to take in water from the ground. They have tiny holes around them which allow the water from the ground to enter the pipe after travelling through the soil above. The water then either percolates into the surrounding soil or is taken to an underground drainage system – preventing standing water.

Unperforated drainage pipes, on the other hand, are primarily used to distribute surface water – not foul water. This type of pipework does not dissipate water into the surrounding area – it simply redirects it to another water body (i.e. river or soakaway system).

If you’re unsure whether you need perforated or unperforated pipes, talk to the team today.

How much do unperforated pipes cost?

The price you’ll pay for unperforated drainage pipes can vary depending on several factors, including your required diameter and coil length.

As with most things, larger pipes in longer lengths are likely to cost more than narrower/shorter pipes. However, we guarantee some of the most competitive prices around, allowing you to purchase the unperforated drainage pipes you need without breaking the bank.

All our prices are inclusive of VAT, so you needn’t worry about there being any hidden fees.

For more information about the cost of our land drainage and Twinwall drainage pipes, don’t hesitate to give us a call on 0121 351 3230.

What are the benefits of using unperforated Twinwall drainage pipes?

Here at Cotterill Civils, we are proud to supply unperforated Twinwall pipes that are perfect for use in surface water and stormwater applications.

Available in a selection of sizes – ranging from 150mm to 1050mm – and 1, 1.5 and 6m lengths, they are commonly used by the leisure, agricultural and commercial sectors to construct infrastructure – usually beneath pavements, tarmacked roads, airports and railways.

Our Twinwall drainage pipes are manufactured from high-density polyethylene (HDPE), a plastic material that is lighter than concrete but stronger than PVC. Corrugated on the outside for additional strength, they have a smooth inner bore to ensure a high flow rate.

Unperforated pipes like these can be easily cut to size using a handsaw if required. And ring seals can be inserted to ensure they are watertight.

If you’d like to know more about the Twinwall unperforated pipes we supply, you’re welcome to contact us at any time.

How long will I have to wait for unperforated pipes to be delivered?

Delivery times can vary from product to product, but we aim to dispatch all online orders as quickly as possible – ensuring you’re not waiting too long for them to arrive.

Our unperforated land drainage coils are typically delivered within 1-4 days, depending on what time you place your order, whereas our socketed and plain-end Twinwall pipes usually take 3-5 days from your order date.

Before you check out, an estimated delivery date will be displayed on your screen. When payment has been received, we’ll send you a confirmation email, including the date we expect your order to be delivered to your chosen address. We’ll always keep you informed if anything affects timescales.

If you need unperforated drainage pipes in a hurry, be sure to speak to a member of our friendly sales team on 0121 351 3230 and we’ll do everything we can to accommodate your needs.
