Collection: Sewage Treatment Plants

A sewage treatment plant cleans wastewater on site for homes and businesses with no mains sewer. The treated water goes to a drainage field or, where the rules allow, a watercourse. Size the plant by the number of people it serves, then choose a gravity or pumped outlet and an inlet depth to match your drain.

Read the buying guide and questions
  • Sizes from 4 to 50 person
  • Gravity or pumped outlet on most models
  • Marsh, Klargester, Graf, Clearwater and WTE
  • Inlet depth options and shallow-dig models for high water tables

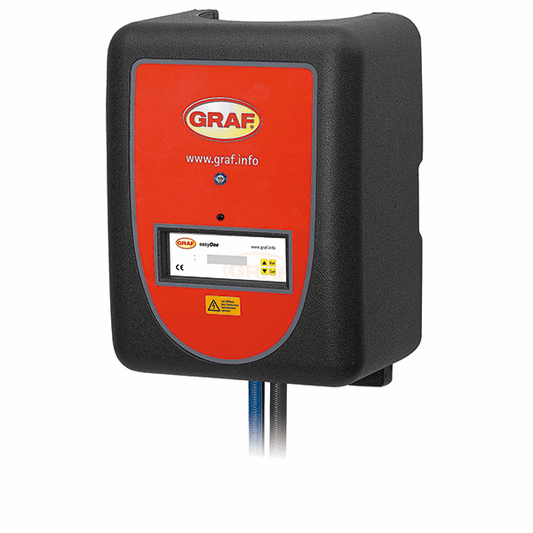

  • Sample chambers, Graf external cabinets and extension turrets

How to choose a sewage treatment plant

1. Size it by population

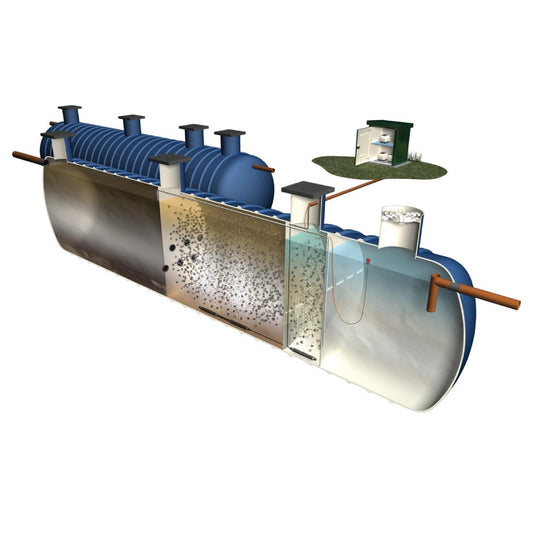

Plants are rated by the number of people they serve, called population equivalent. Makers give bedroom guides for houses: our 6 person Marsh plants, for example, are listed for up to a 4 bedroom house. For several homes or a business, size it using British Water's Flows and Loads guidance, or ask us.

2. Check where the treated water goes

In England, the Environment Agency's general binding rules let you discharge without a permit if you meet all of them. The main ones:

  • 2 m³ a day or less to ground, through a drainage field built to BS 6297
  • 5 m³ a day or less to a river or stream, and only from a treatment plant, not a septic tank
  • the plant meets the British Standard in force when installed (BS EN 12566-3 for packaged plants)
  • for a single house, no public foul sewer within 30m of the property boundary

If you can't meet them, you need a permit. Wales, Scotland and Northern Ireland have their own rules. A new installation also needs Building Regulations approval (Part H).

3. Gravity or pumped outlet

Use a gravity outlet where the treated water can fall all the way to the discharge point. Use a pumped outlet where the drainage field or watercourse is higher than the outlet, or too far away to fall. Most models here come in both.

4. Match the inlet depth

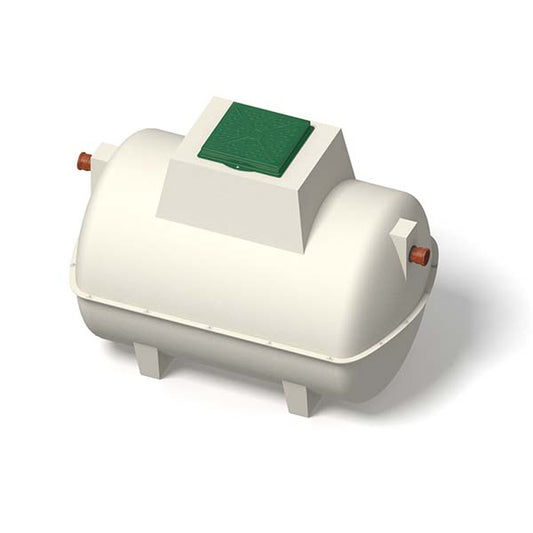

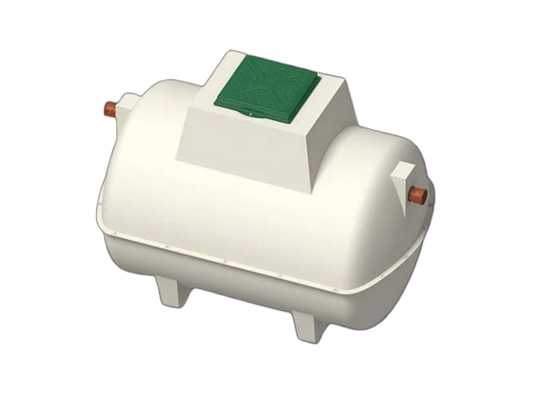

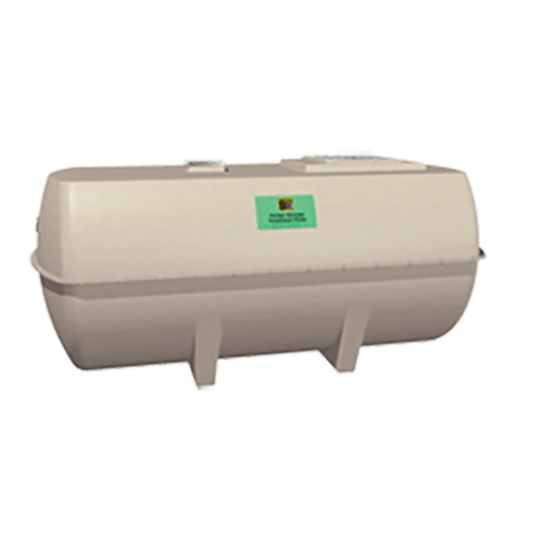

The plant's inlet has to meet your incoming drain. Klargester BioDisc plants come with 450mm, 750mm or 1250mm inlets, several Clearwater BioAir sizes with 0.5m to 2m inlets, and WTE Vortex with 550mm or 1050mm. For bedrock or a high water table, a shallow-dig model such as the Marsh Ensign Shallow means less digging.

5. Plan for power, loading and servicing

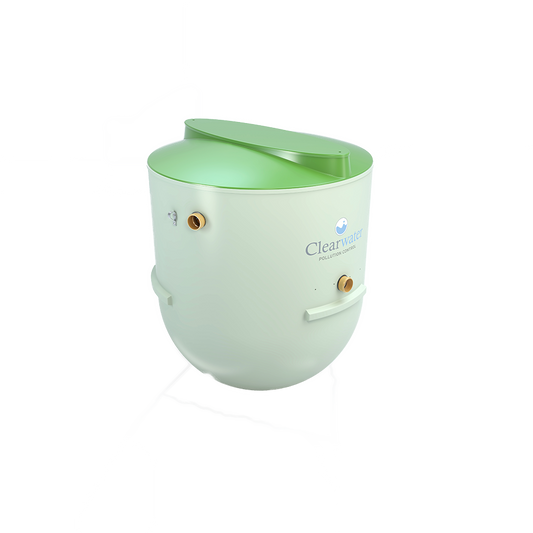

  • Power: most plants need a permanent supply for the air blower or motor. The gravity Clearwater E6 has no electrical parts.

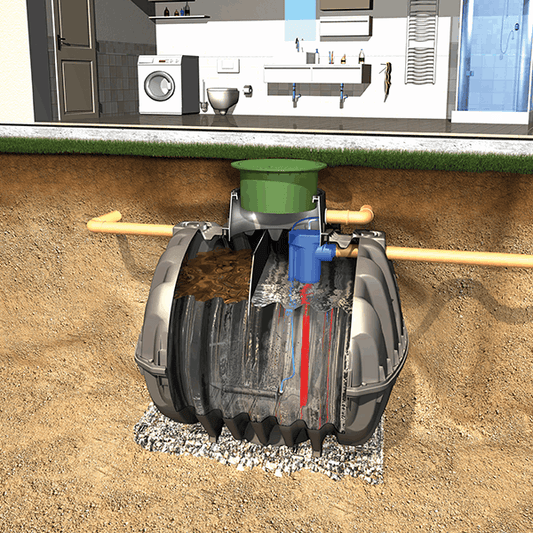

  • Driveways: most Graf One2Clean sizes offer a vehicle-loading lid. Other plants under a driveway need a plinth or surround, as the maker specifies.
  • Servicing: a competent person should maintain the plant, and desludging must be done by a registered waste carrier.
  • Sampling: add a sample chamber if your design or permit needs one.

Send your site drawing for a free drawing take-off, or call 0121 351 3230 to talk it through.

Questions about sewage treatment plants

What size sewage treatment plant do I need?

Size it by the number of people it will serve, known as population equivalent. For houses, makers publish bedroom guides: our 6 person Marsh plants, for example, are listed for up to a 4 bedroom house. For several homes, holiday lets or a business, use British Water's Flows and Loads guidance, or send us the details and we'll help size it.

What is the difference between a septic tank and a sewage treatment plant?

A septic tank settles out solids, and its outflow must go to a drainage field. A sewage treatment plant also treats the wastewater biologically, usually with air, so the effluent is much cleaner. In England, only a treatment plant can discharge to a river or stream under the general binding rules. A septic tank cannot.

Do I need a permit for a sewage treatment plant in England?

Not if you meet all of the Environment Agency's general binding rules. They allow up to 2 m³ a day to ground through a drainage field, or up to 5 m³ a day to a watercourse, from a plant that meets the British Standard in force when installed. A public foul sewer within 30m, or a protected area, can mean you need a permit or a sewer connection.

Do I need a gravity or pumped outlet?

Choose a gravity outlet if the treated water can fall all the way to the drainage field or watercourse. Choose a pumped outlet if the discharge point is higher than the plant's outlet or too far away for the pipe to fall. Most plants in our range come in both versions, so check the levels on your drawing first.

Do sewage treatment plants need electricity?

Most do. Aerated plants such as Marsh, Clearwater BioAir and WTE use an air blower or compressor, and the Klargester BioDisc turns its discs with a motor, so each needs a permanent power supply. Pumped outlet versions also need power for the pump. The gravity Clearwater E6 has no electrical parts in the tank.

Can a sewage treatment plant go under a driveway?

Only if the plant and its installation are designed for it. Most Graf One2Clean sizes come with a vehicle-loading lid option. Marsh plants can go under driveways with a plinth or surround that stops vehicle loads reaching the tank. Always follow the maker's installation guide, and keep the lid clear for servicing and emptying.

How often does a sewage treatment plant need emptying?

Follow the maker's manual. The Environment Agency's guidance is to desludge before the plant reaches its maximum sludge capacity, at least once a year or as the maker instructs, using a registered waste carrier. The plant should also be serviced by a competent person, such as a British Water accredited engineer.
