Collection: Interlock Geogrids

Geogrids are rigid polymer meshes laid in a stone sub-base to lock the aggregate together, spread the load and reduce the depth of stone needed on soft ground. Choose the strength to suit the ground and traffic: 20/20 for lighter loads, 30/30 for most roads and car parks, 40/40 for weaker ground or heavier traffic.

Read the buying guide and questions

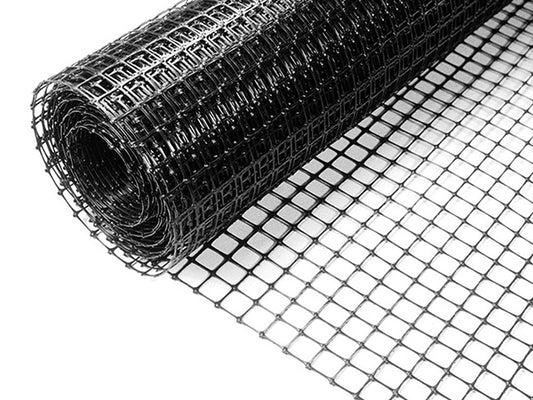

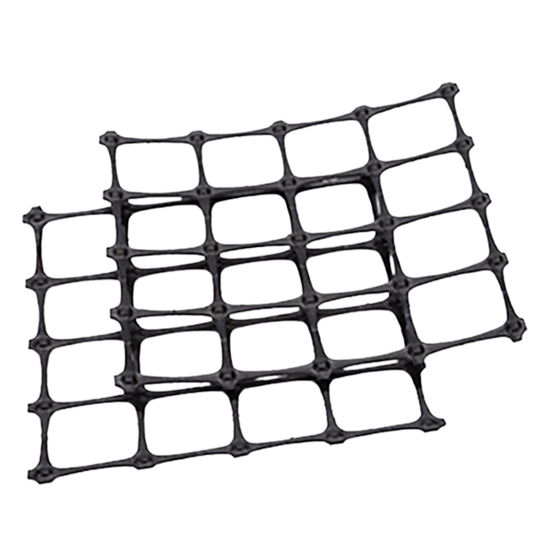

  • Biaxial geogrids 20/20, 30/30 and 40/40 (E'Grid Premium and Wrekin SX)
  • Composite SX30/30 geogrid
  • Don & Low 30/30 geogrid, 3.95m x 50m
  • Roll sizes 4m x 50m, and 4m x 30m for the 40/40

Questions about interlock geogrids

What do the numbers on a geogrid mean?

The pair of numbers is the grid's tensile strength in each direction, so a 30/30 biaxial grid is equally strong both ways. Higher numbers suit softer ground or heavier traffic.

Do I need a geotextile as well as a geogrid?

Often, yes. The geotextile stops the stone sinking into the soil and the geogrid stiffens the stone layer. The composite SX30/30 combines both in one roll.
