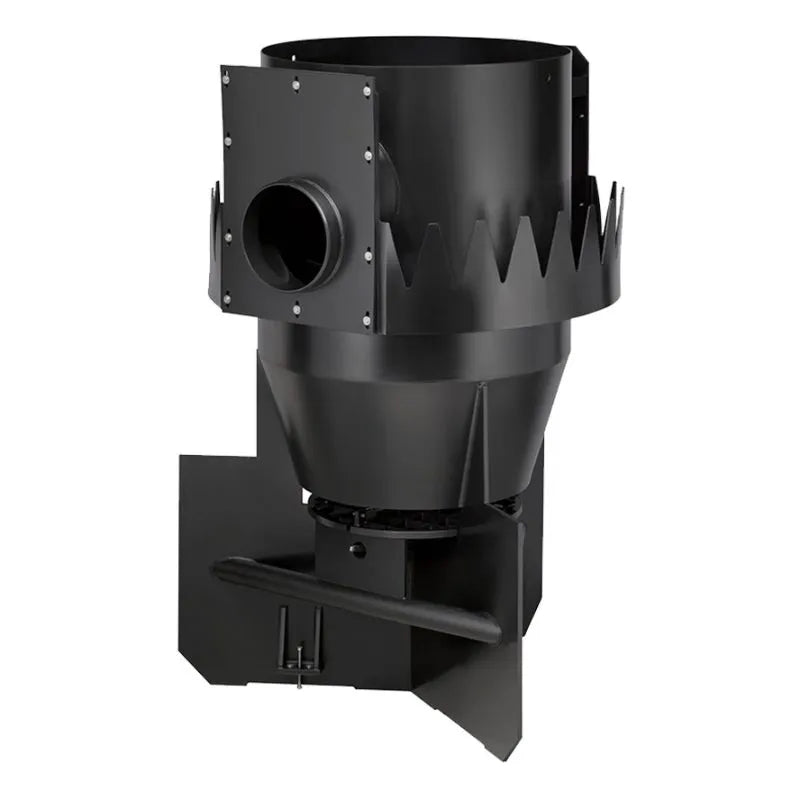

Stormshark - 1500mm Advanced Hydrodynamic Vortex Separator
About the Product This SSK1500M model Stormshark can be pre-installed into a Ø1500mm fabricated chamber and has pipework connection options up to 450mm. Alternatively, this...
About the Product
This SSK1500M model Stormshark can be pre-installed into a Ø1500mm fabricated chamber and has pipework connection options up to 450mm. Alternatively, this model is available as the separator only for installation into a PCC or GRP chamber.
The Specification of this model are as follows (excluding chamber):
- Overall Height – 1950mm
- Minimum Ø Chamber – 1500mm
- Height to Inlet Centre – 1580mm
- Standard Pipework Connection – 450mm
- Sediment Storage Capacity – 0.96m³
- Oil/Debris Storage Capacity – 420 litres
- Weight – 95kg
We also offer the same Stormshark technology in a smaller Ø1200mm chamber or as a larger unit suitable for a Ø1800mm chamber.
About Stormshark
The Stormshark is an Advanced Hydrodynamic Separator with a unique patented design with a proven and tested performance. Designed for use in SuDS treatment trains, providing certainty of water quality treatment, enabling enhanced amenity and biodiversity downstream. Protecting and defending downstream controlled waters from sediment-bound pollutants.
Design certification & testing
Performance
The Stormshark removes sediment bound contaminants. Available in differing sizes to suit site flows and conditions. The Stormshark removes over 50% of fine TSS (0-200 microns, median size 75 microns) at design flows and up to 99% of TDS 0.1 to 0.4mm (coarse).
Weight (kg): 95kg
Height (mm): 1950mm
Pipework Diameter (mm): 450mm
