Stormshark - 1050mm Advanced Hydrodynamic Vortex Separator
About the Product This SSK1000M model Stormshark can be pre-installed into a Ø1050mm fabricated chamber and has pipework connection options between 150 to 225mm. Alternatively,...
About the Product

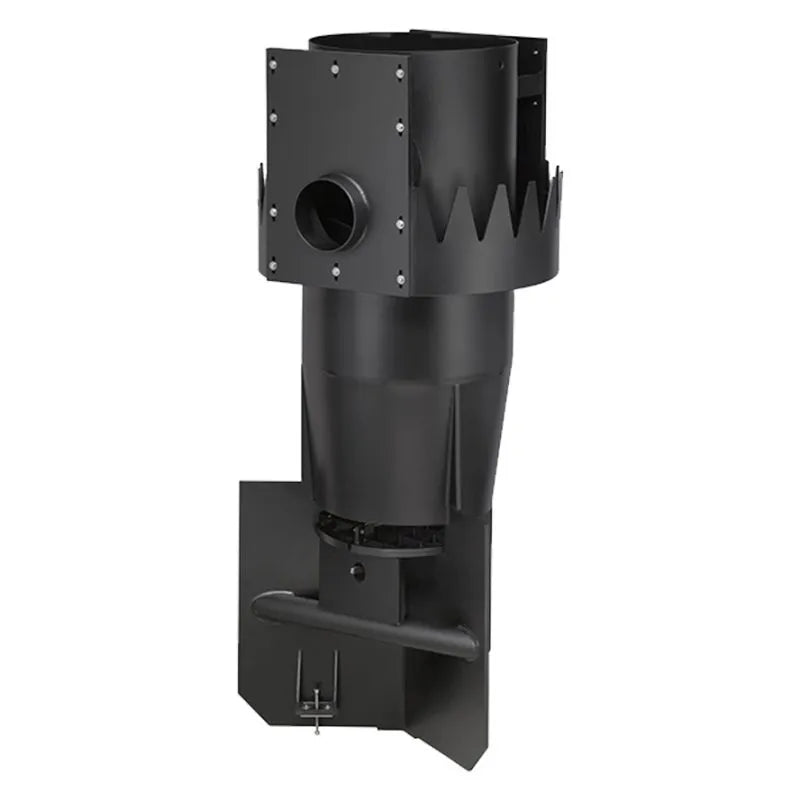

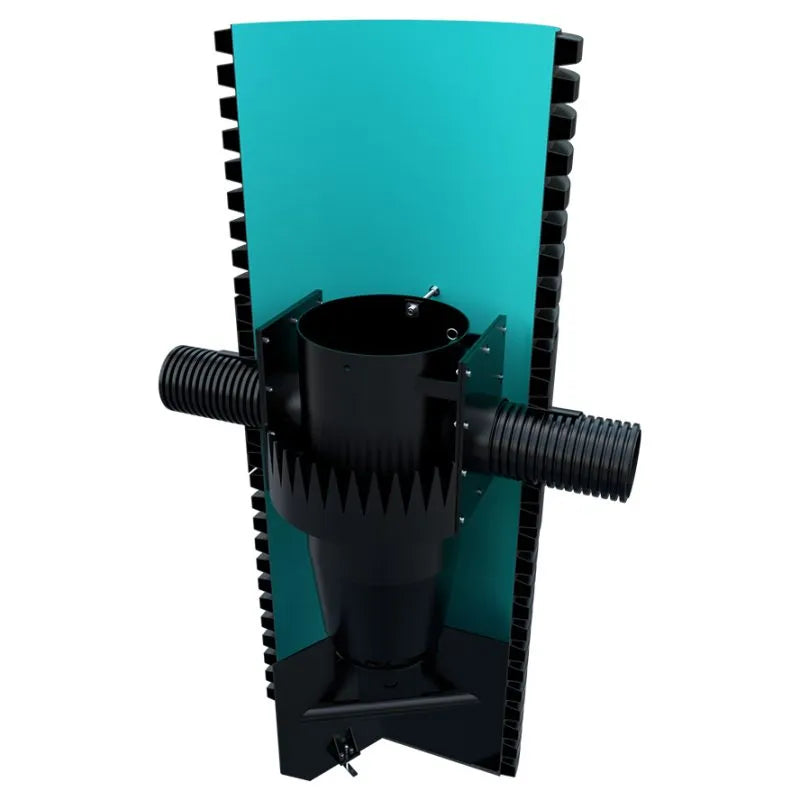

This SSK1000M model Stormshark can be pre-installed into a Ø1050mm fabricated chamber and has pipework connection options between 150 to 225mm. Alternatively, this model is available as the separator only for installation into a PCC or GRP chamber.
The Specification of this model are as follows (excluding chamber):
- Overall Height – 1950mm
- Minimum Ø Chamber – 1050mm
- Height to Inlet Centre – 1587mm
- Standard Pipework Connection – 225mm
- Sediment Storage Capacity – 0.46m³
- Oil/Debris Storage Capacity – 200 litres
- Weight – 70kg
We also offer the same Stormshark technology in a smaller Ø750mm chamber or in a larger Ø1200mm chamber.
About Stormshark
The Stormshark is an Advanced Hydrodynamic Separator with a unique patented design with a proven and tested performance. Designed for use in SuDS treatment trains, providing certainty of water quality treatment, enabling enhanced amenity and biodiversity downstream. Protecting and defending downstream controlled waters from sediment-bound pollutants.
Design certification & testing
Performance
The Stormshark removes sediment bound contaminants. Available in differing sizes to suit site flows and conditions. The Stormshark removes over 50% of fine TSS (0-200 microns, median size 75 microns) at design flows and up to 99% of TDS 0.1 to 0.4mm (coarse).
Weight (kg): 70kg
Height (mm): 1950mm
Pipework Diameter (mm): 225mm
Further questions?
Our team of specialists are here to help. We install many of our products so can provide real-world advice. We also offer a free take-off service if required.
