8 Person Vortex Sewage Treatment Plant (Pumped)

£3,474.00 (£2,895.00 ex VAT)
£3,474.00 (£2,895.00 ex VAT)
Est. delivery 5 -7 working days
Inlet Invert

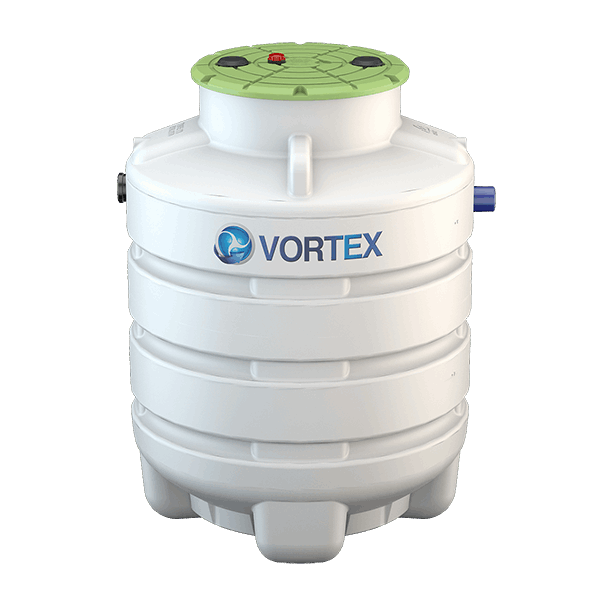

Introducing the NEW 8 Person Vortex Sewage Treatment Plant with Pumped Outlet — a compact, high-performance solution for domestic wastewater treatment. Designed for properties housing up to 8 people, this advanced system delivers up to 98.9% effluent quality and includes a built-in alarm to signal air blower failure.

The pumped outlet ensures reliable operation for sites where wastewater needs to be lifted to a higher-level discharge point, making it ideal for areas with a high water table.

The Vortex range utilises an Activated Sludge Process (ASP) — a 100% aerobic treatment method. Wastewater is continuously oxygenated as it enters the tank, ensuring odour-free operation and effective biological treatment. The tank is rotationally moulded for exceptional durability and strength.

Benefits:

  • Cost-effective solution
  • Compact and space-saving design
  • Odour-free and quiet operation
  • Low running and electricity costs
  • Certified to EN 12566-3 standards
  • Adjustable treatment process
  • Ideal for high water table areas

View Data Sheet

20-Year Warranty Details

View Vortex CE Certificate

FREE DELIVERY

Full Description

This 8 person Quantum sewage treatment plant by WTE offers an efficient 3 stage process to effluent treatment.

Stage 1 - Wastewater enters the Vibro Screen. Here, coarse air bubbles physically break down solid matter. It also acts as a buffer for any non-degradable material from entering into the system.

Stage 2 - The mixture then enters the Biozone. This is where the bacteria digests the pollutants in the water. There is a constant oxygen supply, which ensures proper circulation and treatment.

Stage 3 - The liquid then makes its way into the Final Settlement Tank. Here, it is separated into clear, treated effluent and sludge. The treated wastewater is then able to be discharged out of the tank.

Another major benefit of the Quantum sewage treatment plant is that it can be adjusted to control the aeration within the tank. This means that it can function differently depending of the amount of use.

Benefits:
- Low-cost
- Ultra compact
- No odour
- Low noise
- Low electricity demand
- Adjustable treatment process
- CE marked
- EN 12566-3 certified

Manufacturer SKU

STP8V550IPS-WTE

Technical Specification

Motor Rating (watts): 50w

No. of people: 8

Weight (kg): 143kg/223kg

Height (mm): 2000mm/2500mm

Diameter: 1500mm

Material: HDPE

Inlet Invert: 550mm/1050mm

Outlet Type: Pumped

Installation Depth (mm): 2000mm
