• 6 Person Vortex Sewage Treatment Plant (Pumped)
1 1

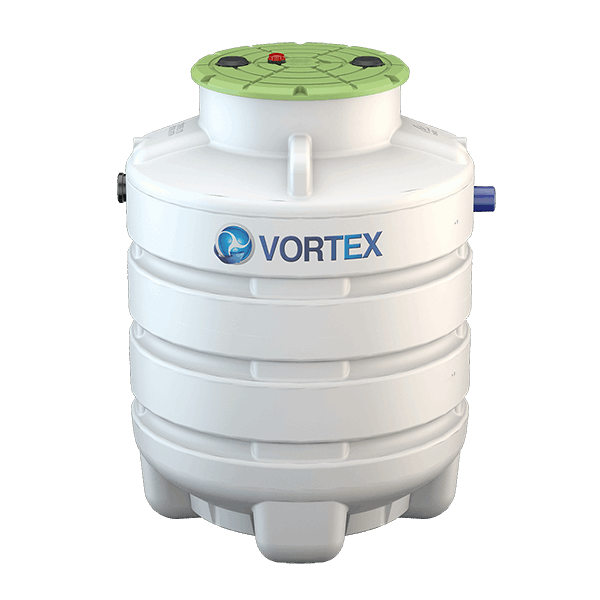

6 Person Vortex Sewage Treatment Plant (Pumped)

£3,216.00 (£2,680.00 ex VAT)
£3,216.00 (£2,680.00 ex VAT)
Est. delivery 5 -7 working days
Inlet Invert

The 6 Person Vortex Sewage Treatment Plant with Pumped Outlet is an ideal solution for domestic properties requiring efficient and reliable wastewater treatment. Designed for use in areas with a high water table, this system includes an integrated alarm on the lid to indicate air blower failure, ensuring optimal performance and peace of mind.

Delivering exceptional results, this advanced treatment plant achieves an effluent quality of up to 98.9%. The integral pumped outlet provides the perfect solution where wastewater needs to be lifted or pumped uphill to reach the discharge point.

The Vortex range by WTE operates using the Activated Sludge Process (ASP) — a fully aerobic treatment method that oxygenates wastewater from the moment it enters the tank, preventing unpleasant odours. Each unit is rotationally moulded for strength, durability, and long-term reliability.

Benefits:

  • Cost-effective solution
  • Compact and space-saving design
  • Odour-free operation
  • Low noise output
  • Energy-efficient with low electricity demand
  • Certified to EN 12566-3 standards
  • Adjustable treatment process

View Data Sheet

20-Year Warranty Details

View Vortex CE Certificate

FREE DELIVERY

Full Description

This 6 person Quantum sewage treatment plant by WTE offers an efficient 3 stage process to effluent treatment.

Stage 1 - Wastewater enters the Vibro Screen. Here, coarse air bubbles physically break down solid matter. It also acts as a buffer for any non-degradable material from entering into the system.

Stage 2 - The mixture then enters the Biozone. This is where the bacteria digests the pollutants in the water. There is a constant oxygen supply, which ensures proper circulation and treatment.

Stage 3 - The liquid then makes its way into the Final Settlement Tank. Here, it is separated into clear, treated effluent and sludge. The treated wastewater is then able to be discharged out of the tank.

Another major benefit of the Quantum sewage treatment plant is that it can be adjusted to control the aeration within the tank. This means that it can function differently depending of the amount of use.

Benefits:
- Low-cost
- Ultra compact
- No odour
- Low noise
- Low electricity demand
- Adjustable treatment process
- CE marked
- EN 12566-3 certified

Manufacturer SKU

STP6V550IPS-WTE

Technical Specification

Motor Rating (watts): 40w

No. of people: 6

Weight (kg): 143kg

Height (mm): 2000mm

Diameter: 1500mm

Material: HDPE

Inlet Invert: 550mm/1050mm

Outlet Type: Pumped

Installation Depth (mm): 2000mm
