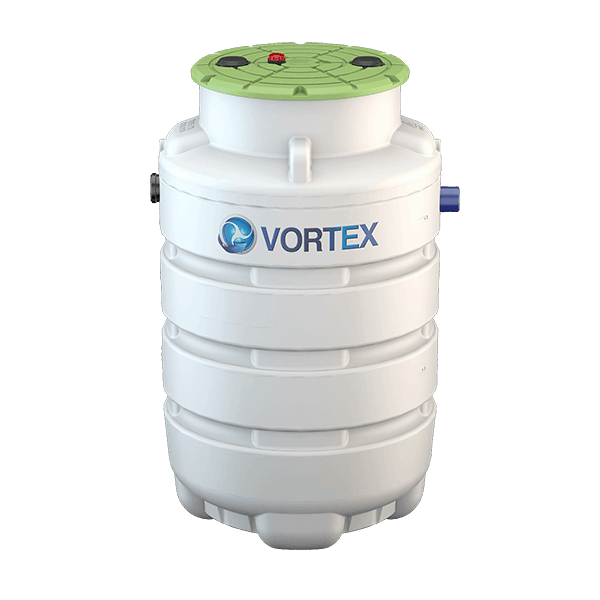

• 4 Person Vortex Sewage Treatment Plant (Pumped)
1 1

4 Person Vortex Sewage Treatment Plant (Pumped)

£2,934.00 (£2,445.00 ex VAT)
£2,934.00 (£2,445.00 ex VAT)
Est. delivery 5 -7 working days
Inlet Invert

The 4 Person Vortex Sewage Treatment Plant with Pumped Outlet provides an efficient, reliable solution for domestic off-mains wastewater treatment. Designed for properties with up to four occupants, this system is ideal where gravity drainage is not possible, as it actively pumps treated wastewater to the final discharge point.

Constructed using durable rotationally moulded materials, the system is built to last and includes an integrated alarm on the lid to signal air blower failure. This compact treatment plant is particularly suited to sites with a high water table or limited installation space.

The Vortex range operates using a 100% aerobic Activated Sludge Process (ASP), meaning wastewater is continuously oxygenated as soon as it enters the tank. This ensures odour-free operation while maintaining outstanding effluent quality and performance for your off-mains sewage requirements.

Benefits:

  • Cost-effective and energy-efficient
  • Compact, space-saving design
  • Odour-free and quiet operation
  • Low electricity consumption
  • Certified to EN 12566-3 standards
  • Adjustable treatment process
  • Ideal for high water table locations

View Data Sheet

20-Year Warranty Details

View Vortex CE Certificate

FREE DELIVERY

Full Description

This 4 person Quantum sewage treatment plant by WTE offers an efficient 3 stage process to effluent treatment.

Stage 1 - Wastewater enters the Vibro Screen. Here, coarse air bubbles physically break down solid matter. It also acts as a buffer for any non-degradable material from entering into the system.

Stage 2 - The mixture then enters the Biozone. This is where the bacteria digests the pollutants in the water. There is a constant oxygen supply, which ensures proper circulation and treatment.

Stage 3 - The liquid then makes its way into the Final Settlement Tank. Here, it is separated into clear, treated effluent and sludge. The treated wastewater is then able to be discharged out of the tank.

Another major benefit of the Quantum sewage treatment plant is that it can be adjusted to control the aeration within the tank. This means that it can function differently depending of the amount of use.

Benefits:
- Low-cost
- Ultra compact
- No odour
- Low noise
- Low electricity demand
- Adjustable treatment process
- CE marked
- EN 12566-3 certified

Manufacturer SKU

STP4V550IPS-WTE

Technical Specification

Motor Rating (watts): 40w

No. of people: 4

Weight (kg): 107kg

Height (mm): 2000mm

Diameter: 1215mm

Material: HDPE

Inlet Invert: 550mm

Outlet Type: Pumped

Installation Depth (mm): 2000mm
