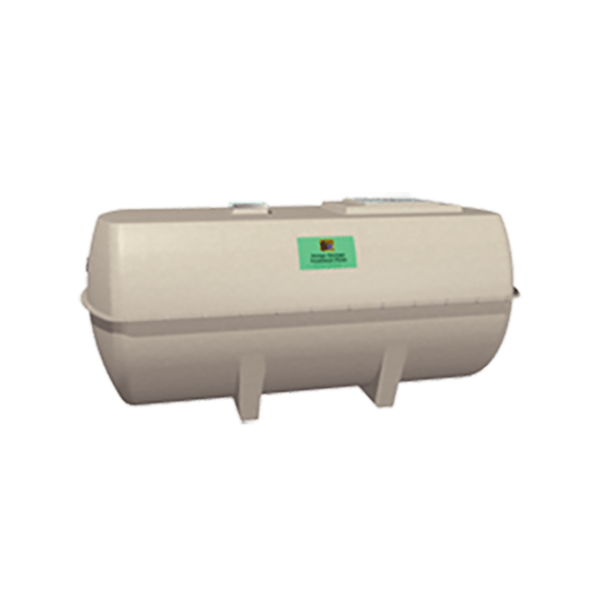

6 Person Marsh Ensign Shallow Sewage Treatment Plant (Gravity)

Regular price
£2,724.00 (£2,270.00 ex VAT)
Regular price
£3,358.00
Sale price
£2,724.00 (£2,270.00 ex VAT)
Est. delivery: 5-7 working days
This sewage treatment plant comes with a gravity outlet and is suitable for dwellings with up to 6 people or a 4 bedroom house. It also has a shallow dig profile. Marsh sewage treatment plants are widely regarded as the most efficient, reliable and economical domestic systems on the market.

Specifications:

Features:

  • Tested to BSEN12566:3 and CE-marked to ensure compliance with latest environmental and Building Regulations requirements
  • Class-leading effluent quality of 11.5:19.2:8.4 (BOD:SS:NH4 ) ensures discharges well within national consent standards
  • Three chamber system correctly sized for separation and retention of solids improves final effluent quality
  • Standard or shallow options enable suitability for all site conditions (including driveways - subject to plinth/surround to prevent superimposed loadings)
  • Shallow option ideal for groundworks involving bedrock or high water table as the low profile allows for safe, cost effective installation
  • Low energy compressors ensure minimal running, maintenance and servicing costs
  • High specification bio-media (310m3 per m2 ) and membrane diffusers ensure even circulation to eliminate 'dead spots'
  • Internal recirculation (from final to primary chamber) continues treatment process to provide higher effluent quality whilst balancing flow over 24 hour period or periods of intermittent use
  • Integral lifting eyes for improved on-site handling
  • Unique Ôkeying-in ' lip to assist anchoring into granular or concrete surround
  • Optional extras include patented Polylok filter to further reduce suspended solids and extend life of drainage field; extensions for deep installations; pumped outlets for sites with adverse levels; and many more

Guarantee:

Rest assured that our Marsh sewage treatment plants come with a 25-year structural warranty and have a 50-year design life.

Installation Service:

If required, we can also provide you with an installation service at an additional cost (location dependent). Contact us on 0121 351 3230 to find out more.

Full Description

This sewage treatment plant is for dwellings with up to 6 people or 4 bedroom house. It comes with a gravity outlet and is designed for a shallow dig.

Why choose a Marsh Ensign Sewage Treatment Plant?
If your property is unable to connect to the mains sewerage infrastructure, your most cost-effective and environmentally friendly “off mains” option is a packaged sewage treatment plant. In basic terms, a sewage treatment plant is a below-ground tank which treats the incoming effluent to an environmentally acceptable quality. This treated water can then be legally discharged to flowing surface waters or in-ground soakaway following applicable exemptions or consents.

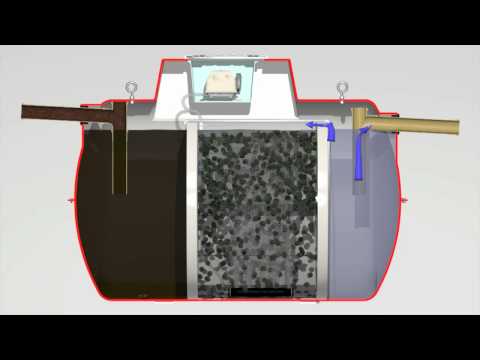

The Marsh Ensign Sewage Treatment Plant is an excellent choice. Notwithstanding the anaerobic absorption occurring in the essential settlement tank (as septic tanks) the Ensign unit permits the cleared up water to go into a second “air circulation” chamber where it is dealt with to expel the broken up constituents. Here oxygen-consuming microscopic organisms, upheld by diffused air and versatile media, guarantee full treatment is accomplished before the treated emanating (and ‘sloughed off’ microscopic organisms) stream to the last settlement chamber before release. This plant treats effluent to British and European Standards to allow it to be discharged back into the watercourse whilst reaching national consent standards. Our tanks can be manufactured with either a gravity or pumped outlet to meet your site requirements.

Our Ensign domestic sewage treatment plant comes with lifting eyes to make unloading and installation faster and safer. They have also been designed to self-level on the base and use unique pipe connections to ensure the installation is undertaken efficiently and correctly.

What are the benefits of the Marsh Ensign Sewage Treatment Plant?
We find our customers like the Ensign range due to its ease of installation, reliability, and cost-effective operation and maintenance.

No moving parts
Low running and maintenance costs
Faster and safer to install due to lifting eye
Tested and certified to BSEN12566-3
50-year design life
25-year structural guarantee
What size of Sewage Treatment Plant should you choose?
This sewage treatment plant is suitable for 6 people or a 4 bedroom house.

If you are unsure of what size is required, please feel free to call us or view our size guide here.

What is a Shallow Sewage Treatment Plant?
This sewage treatment plant has “shallow dig” profile, which makes the unit just 1.6m high and allows for a 20-30% reduction in the excavation. This system is ideally suited for installation on sites where hard rock conditions cause deeper excavation to be costly and time-consuming.

Our sewage treatment plant installation service
If required, we can also provide a complete package where we will supply and install your sewage treatment plant at an additional cost. Our installation service is dependent on your location. Contact our team of specialists on 0121 351 3230 to find out more.

More useful information on sewage treatment plants
As suppliers and installers of sewage treatment plants and with over 25 years of experience, we are industry specialists. Here are some useful blogs with helpful information on sewage treatment plants:

Beginner’s guide to sewage treatment plants
Guide to size and type of sewage treatment plant to select
A helpful guide to appointing an installer
Off mains drainage – what are your options

Technical Specification

No. of people: 6

Height (mm): 1600mm

Outlet: Gravity

Outlet Invert: 575mm

Inlet Invert: 500mm

Width (mm): 1912mm

Length (mm): 2860mm

Outlet Type: Gravity
