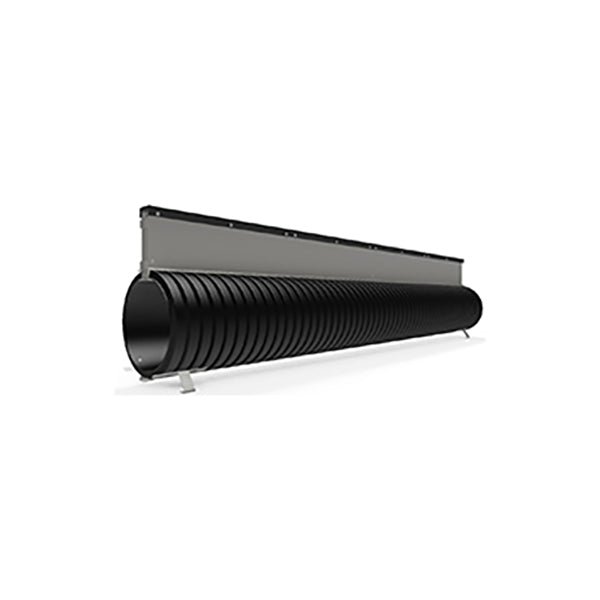

Swarm Aqua - 600mm Slot Drain (2m lengths)

Regular price
£665.87 (£554.89 ex VAT)
Regular price
Sale price
£665.87 (£554.89 ex VAT)
Est. delivery: 5 working days
Swarm Aqua slot drains are perfect solution for surface water drainage, coming in 100mm-600mm diameters, 2m lengths and up to F900 load rating.


  • Ductile Iron Top
  • Heelsafe 10mm Openings
  • Steel walls
  • Twinwall HDPE Channel
  • Spacers
  • Superior aesthetic finish
  • Simple to install
  • Cost effective
  • Ideal in heavy traffic/pedestrian areas

Full Description

We supply a wide range of linear/channel drainage to suit your needs. This F900kN Swarm Aqua channel drainage provides an exceptional product for surface water drainage. Coming in diameters from 150mm-600mm, in 2m lengths as standard, this drainage can be tailored specifically to your system.

Why purchase Swarm Aqua Channel/Linear Drainage?
Swarm Aqua has a focus on strength, rigidity and lighter weight, providing the perfect drainage solution. The channels have a strong, durable ductile iron top section (with an option of steel for pedestrian use), combined with steel side walls and a twinwall conduit ensuring that the product is ideal for all external drainage applications.

What are the benefits of Swarm Aqua Channel/Linear Drainage?
Swarm Aqua slot drains are perfect solution for surface water drainage.
The HDPE section is made from 100% recycled material
Coming in a full range of sizes and fittings from 100 – 600mm wide
Channel manufactured to SN6, with a predicted design life over 60 years
Steel throat section can withstand higher vertical loads and shear forces
Smooth bore, giving excellent hydraulic properties
Custom lengths available to prevent wastage on site
The aesthetically pleasing, sleek modern steel or cast iron top is ideal for
schemes where attention to detail is paramount
Easily specifiable with a dedicated design service, bespoke to you
Ease of installation with interlocking sections, saving on installation costs
From loading A15 to F900

Technical Specification

Weight (kg): 56kg

Trench depth: 980mm

Trench width: 1080mm

Load / Load Rating: F900

Inlet Invert: 830mm

Length (mm): 2000mm
