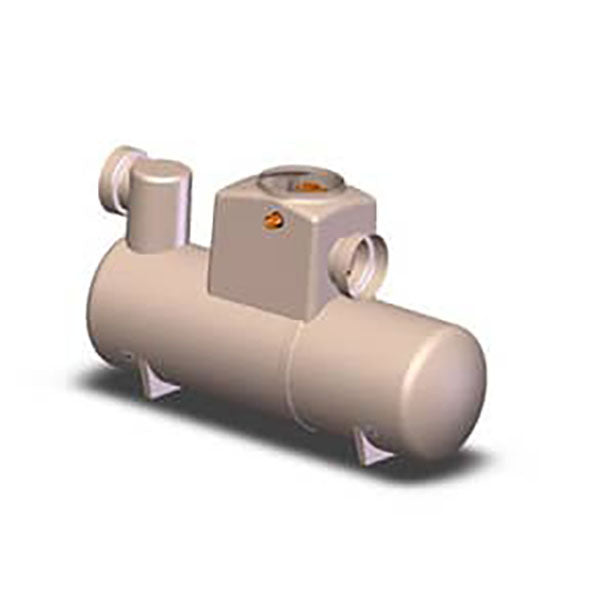

Klargester Bypass Separator 5560sqm

Regular price
£1,808.99 GBP (£1,507.49 GBP ex VAT)
Regular price
Sale price
£1,808.99 GBP

TECHNICAL INFORMATION

Bypass separators fully treat all flows generated by rainfall rates of up to 6.5mm/hr. This covers over 99% of all rainfall events. Flows above this rate are allowed to bypass the separator. These separators are used when it is considered an acceptable risk not to provide full treatment for high flows, for example where the risk of a large spillage and heavy rainfall occurring at the same time is small.

Full Description

Klargester bypass separators provide the ideal solution for low risk floods – when there is little possibility of a combined heavy rainfall and large spillage.

Bypass separators fully treat all flows generated by rainfall rates of up to 6.5mm/hr. This covers over 99% of all rainfall events. Flows above this rate are allowed to bypass the separator.

Features and benefits
Light and easy to install, saving you time and money
Class I design
GRP or rotomoulded construction (subject to model)
Oil alarm system available (required by EN858-1 and PPG3)
Inclusive of silt storage volume
Fitted inlet/outlet connectors
Vent points within necks
Extension access shafts for deep inverts
Maintenance from ground level
CE-marked

Technical Specification

Std Pipework Diameter (mm): 315mm

Diameter: 1220mm

Oil Capacity (litres): 150 litres

Drainage area (m2): 5560m2

Daily Flow (m3/day): 10l/s

Flow (l/s): 10l/s

Length (mm): 2069mm

Silt Capacity (litres): 1000 litres

Pipework Diameter (mm): 315mm
