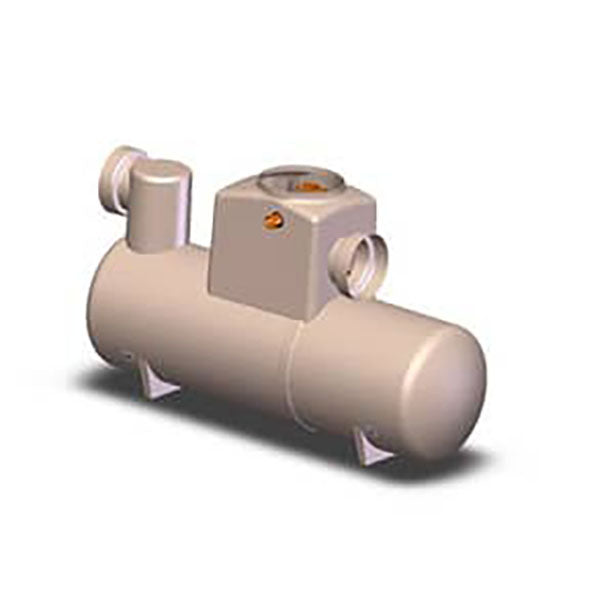

Klargester Bypass Separator 1670 SQM

Klargester Bypass Separator 1670 SQM

Price on request

Our sales team prices this for your quantity and delivery. Add it to your quote, and we'll come back to you within one working day.

Code OSB1670-K

Brand Klargester

Diameter
1350mm
Length
1700mm
Quantity
View full details

Goes well with this

Tick what you need and add it all to the basket in one go.

Overview

TECHNICAL INFORMATION

Bypass separators fully treat all flows generated by rainfall rates of up to 6.5mm/hr. This covers over 99% of all rainfall events. Flows above this rate are allowed to bypass the separator. These separators are used when it is considered an acceptable risk not to provide full treatment for high flows, for example where the risk of a large spillage and heavy rainfall occurring at the same time is small.

Datasheet

More product information

This Klargester bypass separator is suitable for up to 1670sqm and provides the ideal solution for low risk floods – Bypass separators are used when it is considered an acceptable risk not to provide full treatment, for very high flows, when there is little possibility of a combined heavy rainfall and large spillage e.g.

• Surface car parks
• Roadways
• Lightly contaminated commercial areas

Bypass separators fully treat all flows generated by rainfall rates of up to 6.5mm/hr. This covers over 99% of all rainfall events. Flows above this rate are allowed to bypass the separator.

Features and benefits

• Light and easy to install, saving you time and
money
• Class I design
• GRP or rotomoulded construction (subject to
model)
• Oil alarm system available (required by
EN858-1 and PPG3)
• Inclusive of silt storage volume
• Fitted inlet/outlet connectors
• Vent points within necks
• Extension access shafts for deep inverts
• Maintenance from ground level
• CE-marked

Why choose Klargester?

Klargester were one of the first UK manufacturers to have separators tested to EN 858-1. The British Standards Institute (BSI) tested the required range of Kingspan Klargester Bypass separators and certified their performance in relation to their flow and process performance assessing the effluent qualities to the requirements of EN 858-1. Klargester bypass separator designs follow the parameters determined during the testing of the required range of bypass separators.

Specification

Product codeOSB1670-K
BrandKlargester
Daily flow3l/s
Diameter1350mm
Drainage area1670m²
Flow3l/s
Length1700mm
Oil capacity45 litres
Pipework diameter160mm
Silt capacity300 litres
Standard pipework diameter160mm
