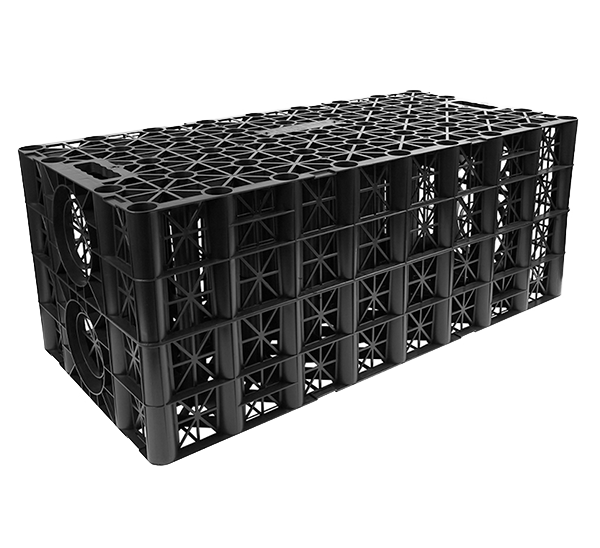

Soakaway Crates: Hydrocell 62 tonne soakaway crate - 1m x 0.5m x 0.4m (190 litres/0.2m3 per crate)

Regular price
£39.00 (£32.50 ex VAT)
Regular price
Sale price
£39.00 (£32.50 ex VAT)
Est. delivery: 1-2 working days

Our soakaway crates clip together to form a load-bearing underground water storage/attenuation system. This product can bear up to 62 tonnes and is 1m x 0.5m x 0.4m in size. It can hold 0.19m3 per crate.

We can also offer an installation service if required.

• Load bearing strength of 62 tonnes per m3

• 95% void ratio

• 100% recyclable

• Integrated inlet and outlet

If purchasing in bulk give us a call so we can offer you the best price possible.

4 x connectors & 2 x shear pins are included per crate.

Hydrocell Data Sheet



Full Description

Our popular and cost-effective soakaway crates (Hydrocell) provide the ideal stormwater management solution.

Helping you meet SUDS requirements

Sustainable Drainage Systems (SuDS) is a vital consideration for all new building developments regardless of size. For example, planning permission now has to be sought for the installation of traditional impermeable surfaces in front gardens (such as driveways, paving) over 5sqm in size. A solution to this is to make the area permeable through the use of permeable paving or asphalt, or by simply installing an effective soakaway system.

Our soakaway crates offer the perfect stormwater management solution – they help prevent flooding during periods of heavy rainfall by holding back excess water and then gently releasing it back into watercourses. This gentle release prevents local sewer networks and watercourses from becoming overwhelmed and flooding.

As well as stormwater attenuation, our soakaway crates can also be used for greywater storage.

Designed to be eco-friendly, our soakaway crates are made from recycled polypropylene and are recyclable at end of use, helping you meet sustainability targets.

What are the advantages of our Soakaway Crates?

- Assembled ready to install
- Available in different configurations to meet specific load requirements
- Available with high load-bearing capability able for HGV traffic
- Modular size of 1m x 500mm plan x 400mm height ensures great versatility in both size and shape of storage
- Lightweight units under 20kg remove the need for mechanical handling
- Manufactured in the UK to ISO 9001 Quality Standards

Why use our Soakaway Crates?

- Prevents extreme peak flows to main drainage and water purification systems
- Rainwater is “cleaned” by the geotextile surround
- Decreases the possibility of flooding during heavy rainfalls
- Allows development of difficult sites by using attenuation/water storage
- Decreases environmental problems caused by the development
- For water storage for subsequent use in toilets, watering plants, cleaning vehicles and other grey water usages
- We offer an Installation Service for Soakaway Crates

If you need a complete package, we can also design, supply and install your stormwater management system for you. Our team of experienced and professional installation experts can provide you with a cost-effective package. Call us on 0121 351 3230 for advice.

Technical Specification

Capacity (litres): 0.19m3

Height (mm): 0.4m

Load / Load Rating: 62 tonnes

Width (mm): 1m

Length (mm): 0.5m
