Rapidself Sump Unit Bucket Galvanised

Rapidself Sump Unit Bucket Galvanised

Regular price £104.75 ex VAT £125.70 inc VAT
Sale price £104.75 ex VAT £125.70 inc VAT

Available to order

Code CASR100

Brand Ulma

Material
Galvanised Steel

Quantity

Total £104.75 ex VAT

Buying in bulk? Get a quote

View full details

Goes well with this

Tick what you need and add it all to the basket in one go.

Overview

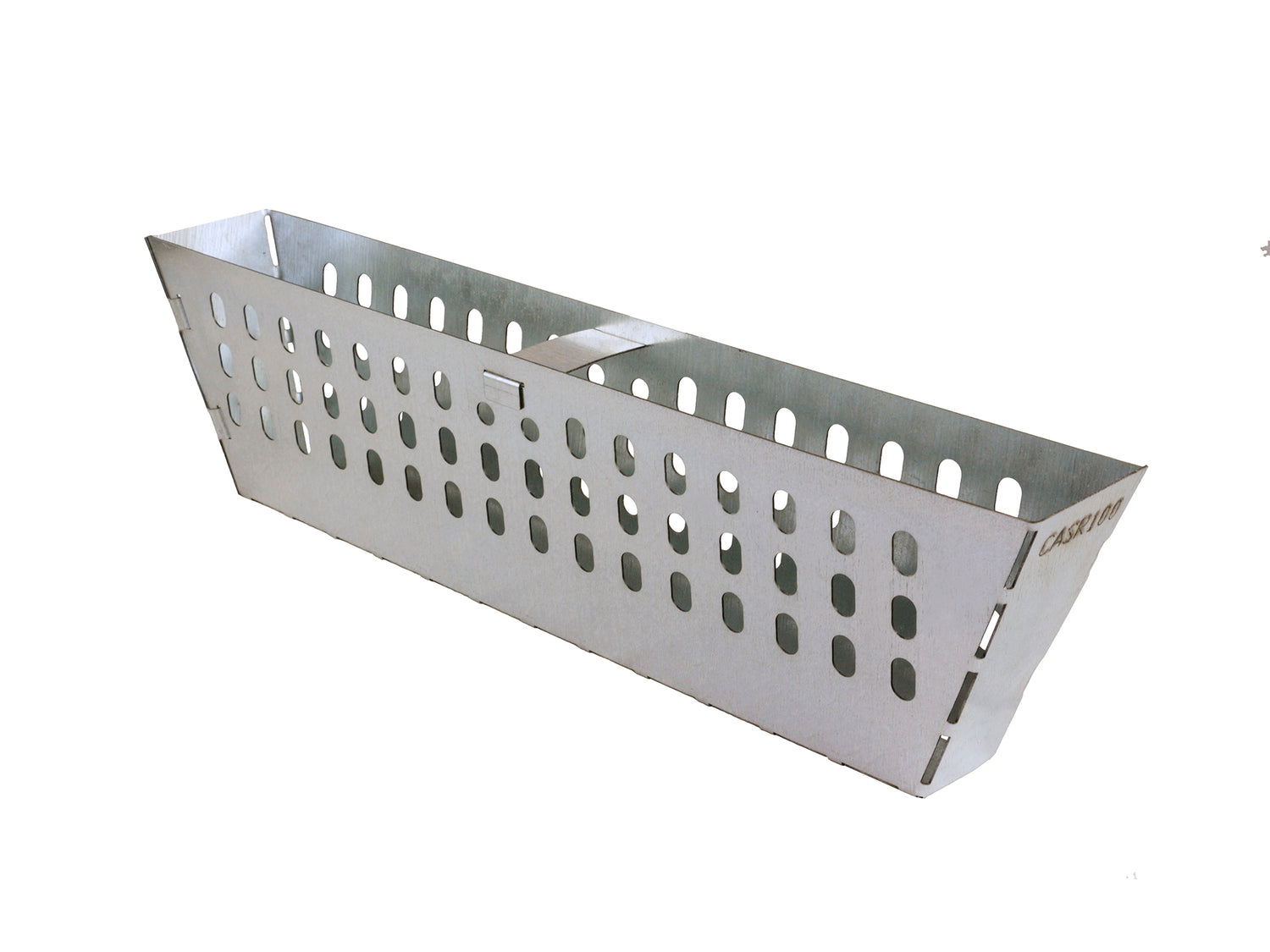

The Rapidself Sump Unit Bucket Galvanised is designed to help collect silt and debris within a compatible drainage system, making maintenance easier and supporting more effective water flow. It is a practical accessory for Rapidself channel installations, helping to improve drainage performance while providing a durable galvanised finish.

More product information

The Rapidself Sump Unit Bucket Galvanised is designed to help collect silt and debris within a compatible drainage system, making maintenance easier and supporting more effective water flow. It is a practical accessory for Rapidself channel installations, helping to improve drainage performance while providing a durable galvanised finish.

- Designed to collect silt and debris from the drainage system
- Helps improve drainage efficiency and simplify maintenance
- Suitable for use with compatible Rapidself sump units
- Galvanised finish for durability
- Ideal for completing a professional channel drainage installation

Specification

Product codeCASR100
BrandUlma
MaterialGalvanised Steel

Downloads

Delivery and collection

  • Delivered across Great Britain on our own vehicles or by courier, depending on the product.
  • Delivery is charged per delivery, not per item, by zone.
  • Collect from Cotterills Birmingham Depot, near Junction 9 of the M42: Hermitage Farm, Grove Lane, Wishaw, B76 9QJ.
  • Northern Ireland, the islands, the Isle of Man and the Channel Islands are quoted separately.

Questions about channel drainage

What load class of channel drain do I need for a driveway?

For a domestic driveway used by cars, choose B125. For paths and patios with foot traffic only, A15 is enough. If vans, lorries or bin wagons will cross the channel, go up to C250 or D400. Always choose for the heaviest vehicle that could cross it, and install it on the concrete bed and haunch the maker specifies.

What standard covers channel drains?

BS EN 1433 is the standard for drainage channels in vehicle and pedestrian areas. It sets load classes from A15 to F900, where the number is the test load in kilonewtons: A15 is 15 kN (1.5 tonnes), B125 is 12.5 tonnes, C250 is 25 tonnes, D400 is 40 tonnes and F900 is 90 tonnes. Manhole covers use the same classes under BS EN 124.

What is the difference between a channel drain and a slot drain?

A channel drain has an open channel under a removable grate, so it is easy to inspect and clear. A slot drain hides the channel below the surface and shows only a narrow slot, which gives a neater finish in paving and public spaces. Both come in a range of load classes, so choose on looks, cleaning access and load.

What size channel drain do I need?

Most domestic driveways and patios use a 100mm wide channel. Bigger areas, long runs or a lot of roof and yard water need a wider or deeper channel, such as a 150mm or 200mm Ulma Multiv+, or a larger slot drain. The right size depends on the area drained and where the outlets go, so send us a drawing if you are unsure.

Do channel drains need a sump or silt trap?

It is good practice to fit a sump unit, usually at the outlet. A sump has a removable bucket that catches silt, grit and leaves before they reach the pipework, which keeps the drain clear. The range includes sump units for Ulma Multiv and Rapidself, Polycon Lite Xtra 100 and the Polycon D400 150mm channel.

How much is delivery?

Delivery is priced by zone and charged per delivery, not per item. Enter your postcode above to see the price for your site, or see our delivery zones page.

Can I collect my order?

Yes. You can collect from Cotterills Birmingham Depot, near Junction 9 of the M42 (Hermitage Farm, Grove Lane, Wishaw, B76 9QJ), Monday to Friday. Choose collection at checkout.

Can I open a trade account?

Yes. Groundworkers, contractors and merchants can apply for a credit account online. Apply for a trade account.

Can you price a whole job from drawings?

Yes. Send us your site drawings and we'll do a free take-off and quote the full drainage schedule, with no obligation. Send your drawings.
