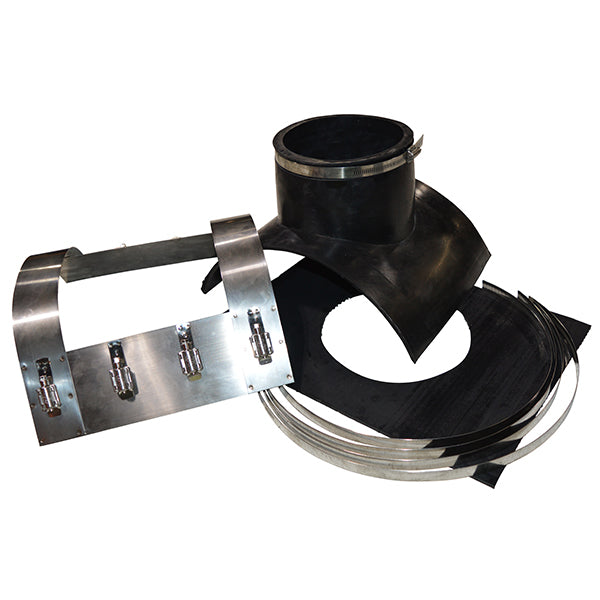

• PVC Lateral Connection Y Saddle - 45 Degree Angle - 160mm
1 1

PVC Lateral Connection Y Saddle - 45 Degree Angle - 110mm

£139.96 (£116.63 ex VAT)
£139.96 (£116.63 ex VAT)

The VIPSeal PVC Y Saddle is a robust lateral connection for creating branch inlets into larger mains. Designed to join a 110 mm lateral pipe into corrugated, ribbed or solid-wall mains, it’s available in 45° and 90° configurations for versatile layouts. The saddle’s strap-retained seal delivers a durable, air- and water-tight connection rated up to 0.5 bar.

Manufactured from performance materials — EPDM sealing element, PVC body and 304 stainless-steel straps — it’s suitable for a wide range of pipe materials and wall thicknesses in stormwater and drainage systems.

CALL FOR LARGE BULK ORDER PRICING: 0121 351 3230

Key Features:

  • Connects 110 mm lateral pipe to larger mains
  • Available in 45° and 90° options
  • Secure, strap-retained seal — pressure resistant up to 0.5 bar
  • Compatible with corrugated, ribbed and solid-wall pipes
  • Durable construction: EPDM, PVC and 304 stainless steel
  • Ideal for stormwater and foul drainage applications

Full Description

The VIPSeal PVC Y Saddle Lateral Connection offers an innovative solution for connecting lateral pipes of 110mm or 160mm outer diameter to larger smooth wall pipes. Compatible with concrete, vitrified clay, and PVC pipes of any wall thickness, these saddles demonstrate exceptional versatility across various applications. Available in both 45° and 90° configurations, they provide installation flexibility. With proper installation, these couplings withstand internal pressures of up to 0.5 bar, ensuring reliable performance. The saddle creates a secure seal, firmly fastened with straps encircling the main pipe's outer surface, guaranteeing a tight and durable connection.

Manufacturer SKU

S110Y/VIP

Technical Specification

Diameter: 160mm to 400mm
