Oriflo Flow Control Chamber 600mm P Series

Regular price
£759.00 (£632.50 ex VAT)
Regular price
Sale price
£759.00 (£632.50 ex VAT)
Inlet Invert

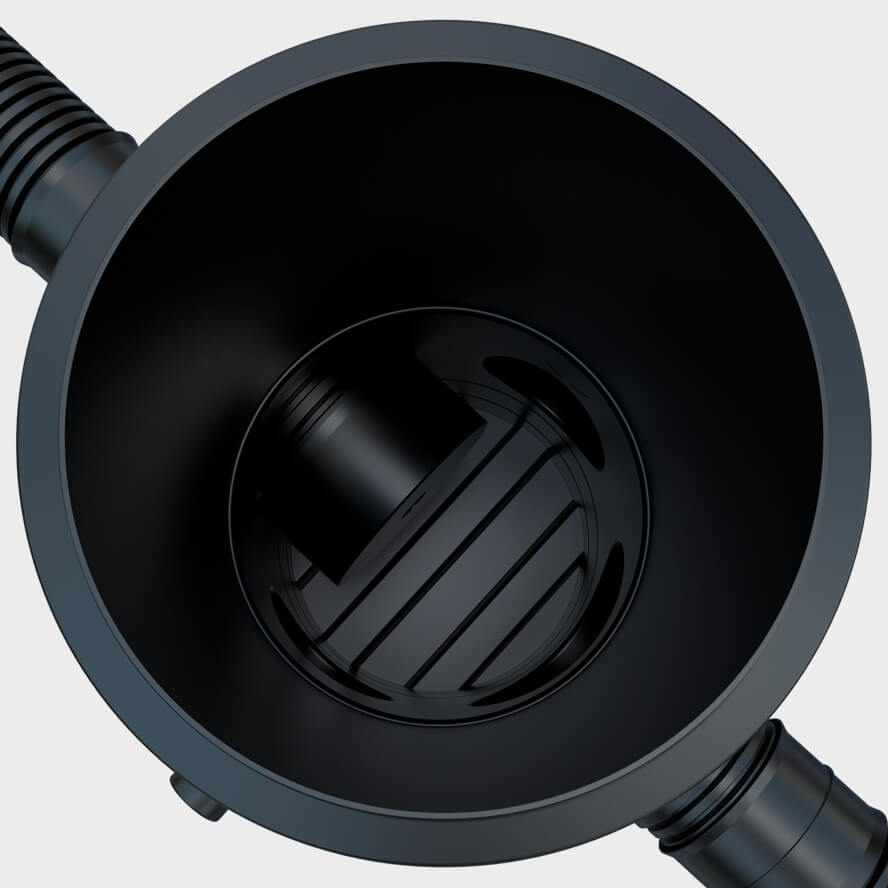

The 600mm Oriflo P Series Flow Control Chamber features a 600mm diameter chamber and an unprotected orifice plate. The main channel socket connection can be either 160mm EN1401, 225mm Twinwall or 300mm Twinwall. Two additional side inlets are provided (use optional — they have blanked ends) that are 110mm or 160mm EN1401 or 225mm Twinwall.

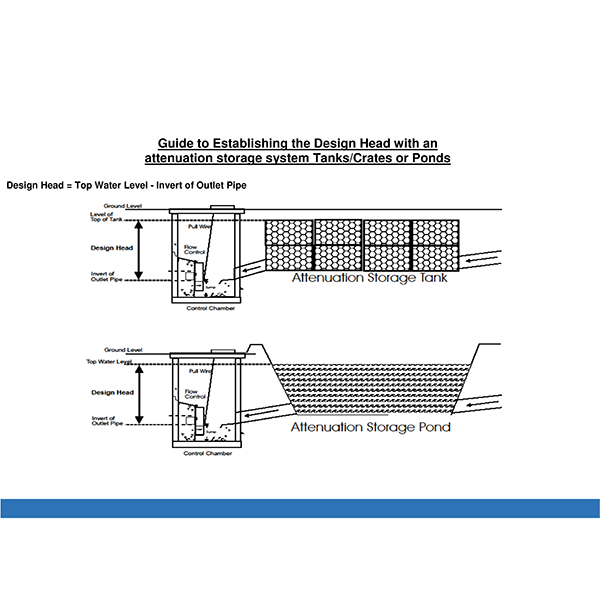

Please let us know your flow rate and head figure, or orifice size if known and we’ll produce your specification.

Features and Benefits

• Quick and simple to install
• Lightweight
• Various options on chamber depth and pipework to suit specific site requirements
• Manufactured in the UK

OFCP600 Data Sheet

OFCP600 Product Drawing

Full Description

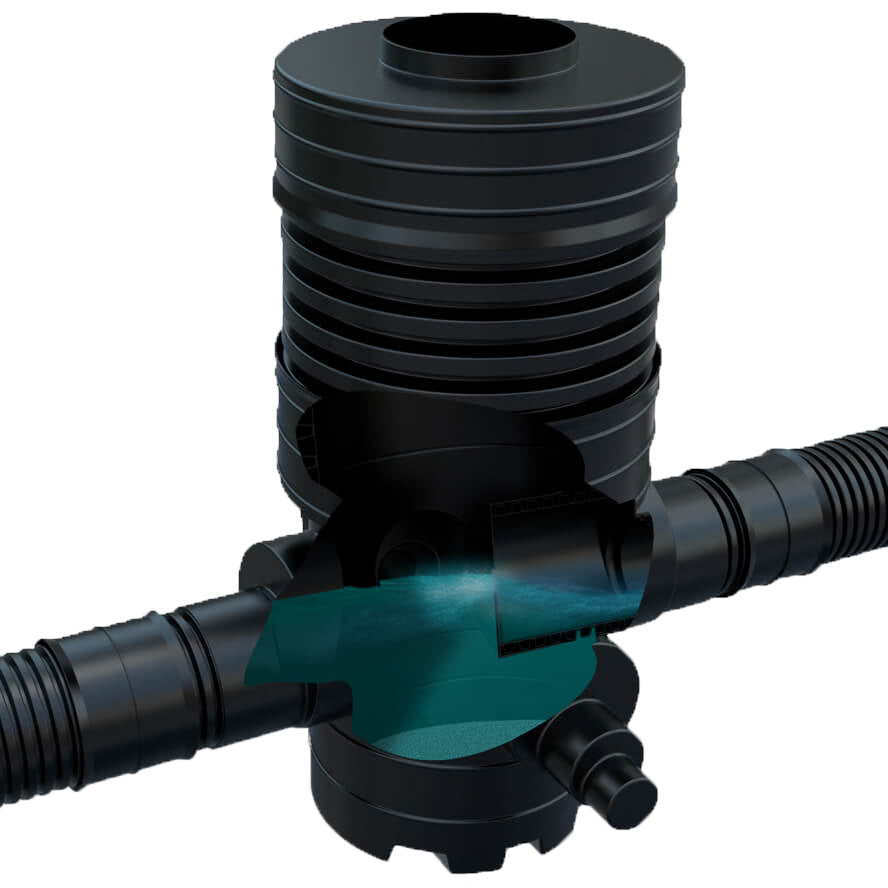

The ORIFLO OFCP600 is an unprotected orifice plate unit, designed to support SuDS management and the sewer infrastructure as part of a designed attenuation system, helping prevent flooding by controlling the flow into the main sewer.

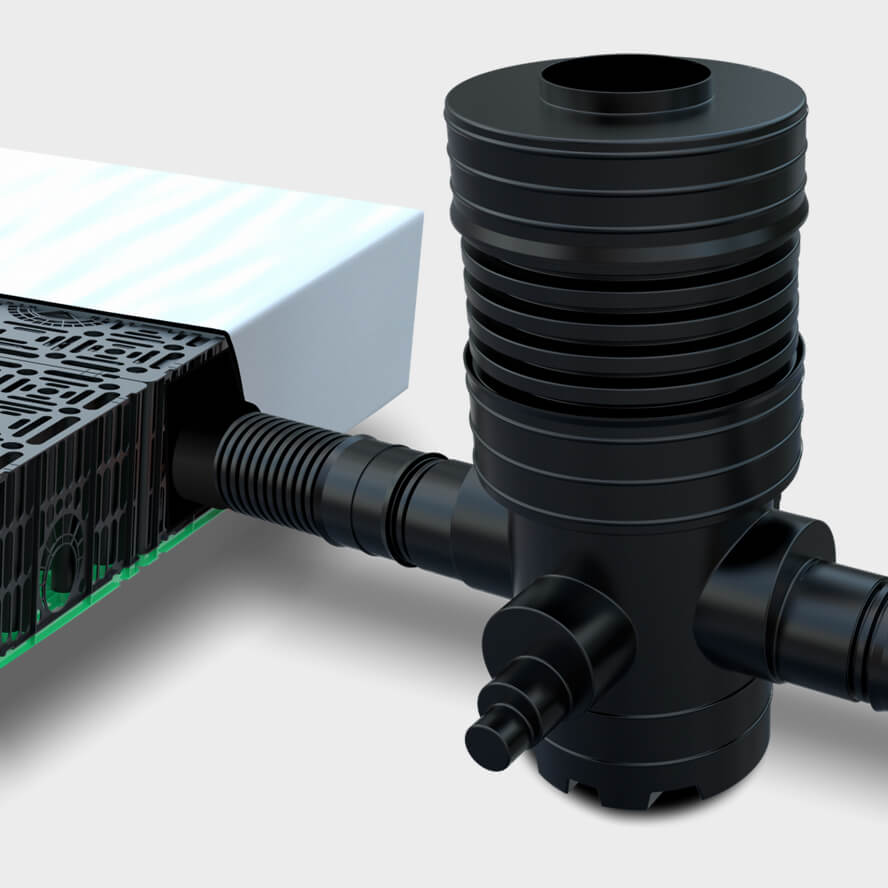

Applications: Typically installed downstream of larger attenuation tank and oversized pipe systems, forming the final part of the SuDS chain.

Features & Benefits:

• One-piece unit delivered ready to install, reducing installation time and costs
• Comparatively Lightweight
• Quick and simple to install
• Granular Backfill
• Offering significant onsite savings against PCC and other traditional construction methods, as they need no construction or wet trades.
• Various chamber depths
• 300mm deep sump for the catchment of solids and fines
• Eliminates wastage associated with in-situ construction
• Chemically Resistant
• Manufactured in the UK
• Design: The orifice diameter is calculated to suit the on-site design criteria for the outflow into the connecting sewer.

Manufacturer SKU

Technical Specification

Diameter: 600mm
