D400 Galvanised Steel Edged Channel Drain - 150mm width x 195mm depth (internal) x 1metre

Regular price
£102.82 (£85.68 ex VAT)
Regular price
Sale price
£102.82 (£85.68 ex VAT)
Est. delivery: 2-3 working days

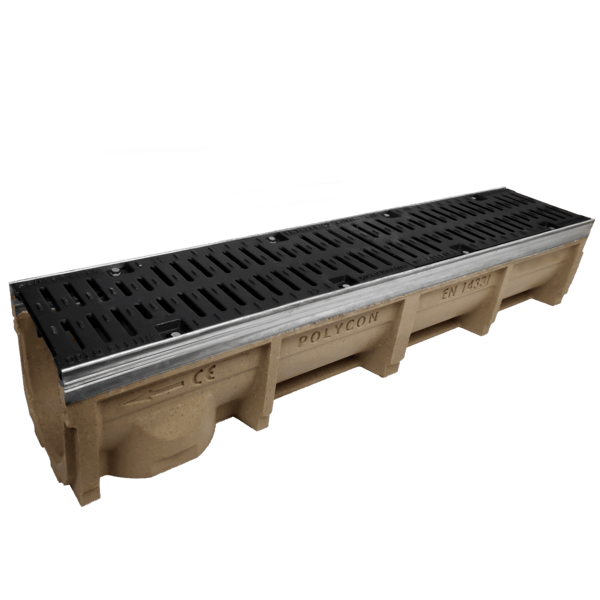

Galvanised steel edged channel drain and comes with D400 ductile iron safeheel

Size: 150mm width x 200mm depth (internal) x 1metre Features & Benefits:
  • Designed in accordance with EN 1433.
  • Polycon KE is manufactured in compliance with ISO 9001:2000.
  • The smooth waterproof surface allows a quick waterflow drainage.
  • High mechanical and chemical resistance.
  • Integrated galvanised steel edge rails.
  • Gratings for all models for all load classes A 15ÐE600.

Full Description

Polycons KE range is a unique drainage system & has benefits like no other channel system in the market.

Benefits include:

• Manufactured from polymer concrete resin which is a tough robust material that provides high chemical resistance and resistance to the freeze and thaw process.

• Manufactured to all EN1433 regulations and comprises of a sealable grove on each channel.

• The channel has a 4mm galvanised edge rail and can withstand loading up to E600.

• Its unique profile allows other channels to join at either side / at either end which eliminates the need for junctions and half mtr sections.

• Has two vertical 110mm outlets at either end and includes identification marking inside the base of the channel.

• ‘Polycon snap fix quick locking system’ which allows the grating to snap into place.

•The channel has indents inside which allows a bolt and bar system enabling other manufactures grating to be used.

• The galvanised channel edge has indent knockouts which enables the gratings extra lugs to sit in which restricts the movement of the gratings.

The KE range is the most unique channel system on the market and compliments Polycon’s full range of channel drainage system.

Technical Specification

Load / Load Rating: D400

Width (mm): 150mm

Length (mm): 1000mm
