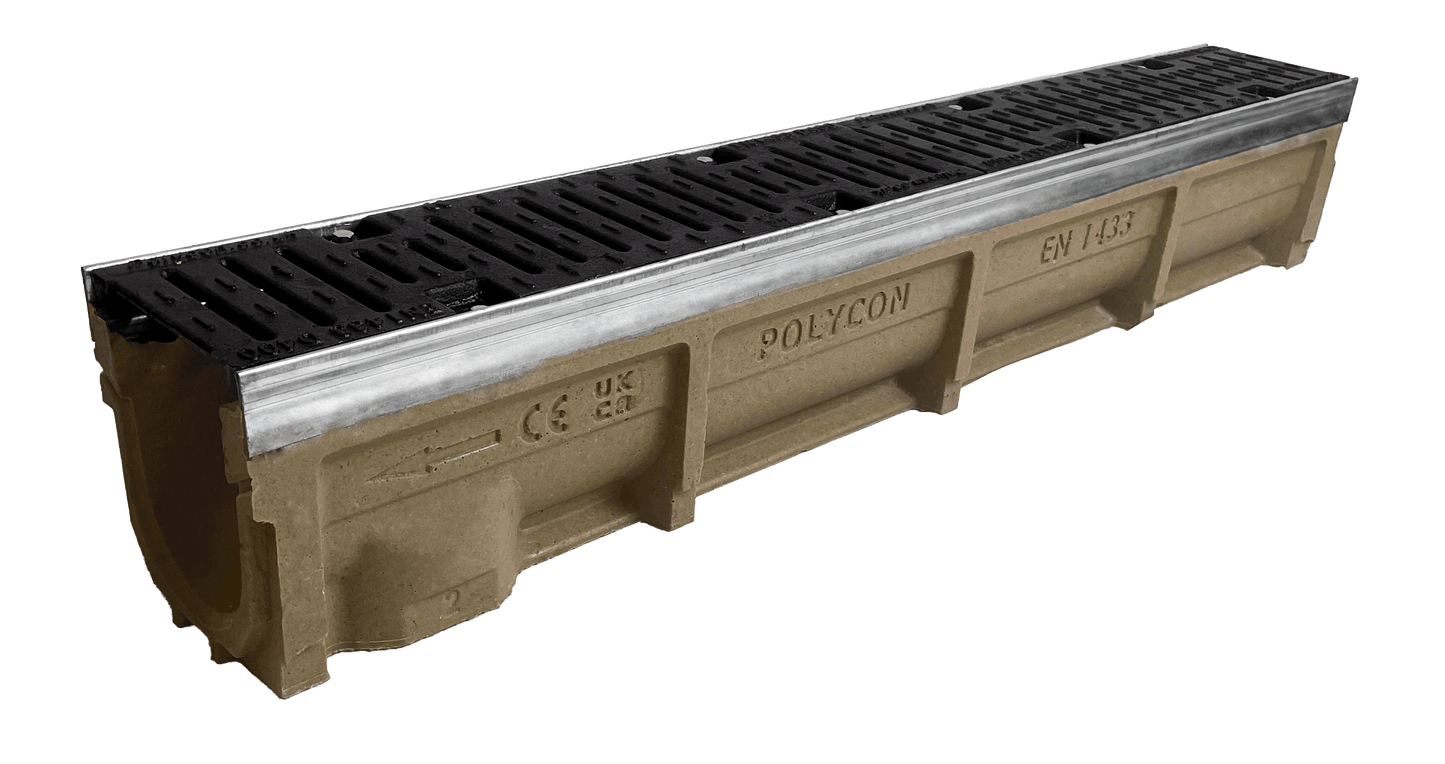

A2F D400 Galvanised Steel Edged Channel Drain - 100mm width x 130mm depth (internal) x 0.5m

Regular price
£49.99 (£41.66 ex VAT)
Regular price
Sale price
£49.99 (£41.66 ex VAT)
Est. delivery: 2-3 working days

This galvanised steel edged channel drain is 0.5m in length and comes with D400 ductile iron safeheel. It has a bottom and side knockout which allows for easy ‘L’ shaped connections.

Size: 100mm width x 130mm depth x 0.5 metre

Features & Benefits:

  • Designed in accordance with EN 1433.
  • Polycon A2F is manufactured in compliance with ISO 9001:2000.
  • The smooth waterproof surface allows a quick waterflow drainage.
  • High mechanical and chemical resistance.
  • Integrated galvanised steel edge rails.
  • Gratings for all models for all load classes
  • Bottom and side knockout points which allow for easy connection between drains at a 90 degree angle.

View product datasheet here

Full Description

Polycon's channel drain range is a unique drainage system & has benefits like no other channel system in the market. The A2F is manufactured from polymer concrete resin which is a durable and robust material that provides high chemical resistance. It also provides resistance to the freeze and thaw process, which makes it low maintenance. The knockouts on the bottom and side of the product make it easy to connect to other channel drains at 90 degree angles, saving you significant time in having to cut the drainage to the desired size.

The A2F is manufactured to all EN1433 regulations and comprises of a sealable grove on each channel. The channel has a 4mm galvanised edge rail and can withstand loading up to E600. Its unique design allows other channels to join at either end which eliminates the need for junctions and half metre sections.

The channel also has indents inside which allows for a bolt and bar system to be used which enables other manufactures grating to be used if required.

Why choose Polycon?

Polycon are the UK’s leading manufacturers, distributors and suppliers of channel drainage, focusing on providing a wide range of water solutions suitable for a diverse range of applications. They have been trading for over eight years and are constantly looking for innovative and unique ways to find water solutions for their customers.

Technical Specification

Weight (kg): 15.2kg

Product Details: Load Class Up To E600

Load / Load Rating: D400

Length (mm): 500mm
