• 4 Person Vortex Sewage Treatment Plant (Gravity)
1 1

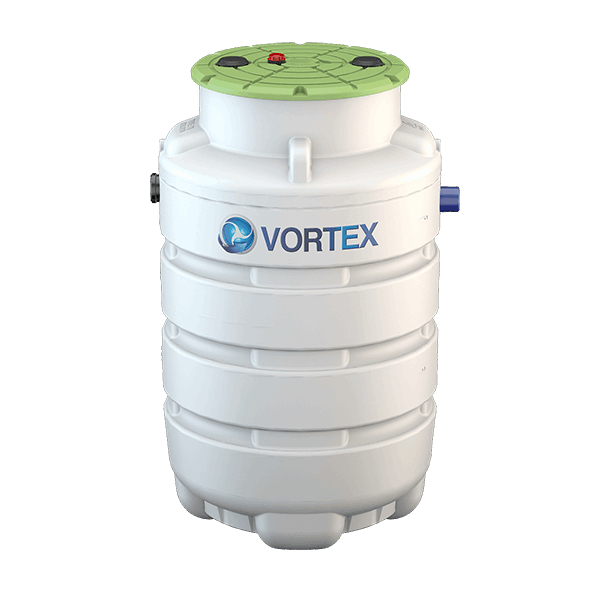

4 Person Vortex Sewage Treatment Plant (Gravity)

£2,340.00 (£1,950.00 ex VAT)
£2,340.00 (£1,950.00 ex VAT)
Est. delivery 5 -7 working days
Inlet Invert

The Vortex 4 Person Sewage Treatment Plant (Gravity Outlet) is a compact and reliable solution for domestic properties housing up to 4 people. Manufactured through rotational moulding, this unit ensures long-lasting durability and includes an alarm on the lid to indicate air blower failure. Ideal for areas with a high water table, it offers efficient performance in challenging ground conditions.

The Vortex range by WTE provides an exceptional solution for sewage treatment, utilising the Activated Sludge Process (ASP). Each system is 100% aerobic — wastewater is oxygenated immediately upon entering the tank, preventing odours and ensuring consistently high effluent quality.

Benefits:

  • Cost-effective and energy efficient
  • Compact, durable design
  • Odour-free operation
  • Low noise and electricity consumption
  • Certified to EN 12566-3 standards
  • Adjustable treatment process for optimal performance

View datasheet here

20 YEAR WARRANTY – view details here

Vortex CE Certificate

FREE DELIVERY

Full Description

This 4 person Quantum sewage treatment plant by WTE offers an efficient 3 stage process to effluent treatment.

Stage 1 - Wastewater enters the Vibro Screen. Here, coarse air bubbles physically break down solid matter. It also acts as a buffer for any non-degradable material from entering into the system.

Stage 2 - The mixture then enters the Biozone. This is where the bacteria digests the pollutants in the water. There is a constant oxygen supply, which ensures proper circulation and treatment.

Stage 3 - The liquid then makes its way into the Final Settlement Tank. Here, it is separated into clear, treated effluent and sludge. The treated wastewater is then able to be discharged out of the tank.

Another major benefit of the Quantum sewage treatment plant is that it can be adjusted to control the aeration within the tank. This means that it can function differently depending of the amount of use.

Benefits:
- Low-cost
- Ultra compact
- No odour
- Low noise
- Low electricity demand
- Adjustable treatment process
- CE marked
- EN 12566-3 certified

Manufacturer SKU

STP4V550G-WTE

Technical Specification

Motor Rating (watts): 40w

No. of people: 4

Weight (kg): 107kg/155kg

Height (mm): 2000mm/2500mm

Diameter: 1215mm

Material: HDPE

Inlet Invert: 550mm/1050mm

Outlet Type: Gravity
