1500mm x 250mm depth Watertight Concrete Manhole Rings (DN1500)

Request a quote

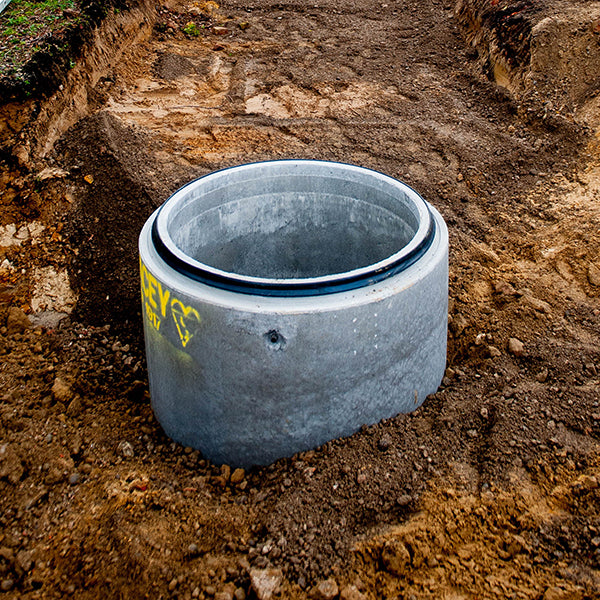

1500mm x 250mm depth Watertight Concrete Manhole Rings

This watertight manhole ring is made from concrete and is 1500mm x 250mm depth. This system is the future of manhole construction for contractors in the UK & Ireland.


  • Quick and easy to install
  • Watertight on construction
  • Safe lifting system
  • Cost saving
  • No concrete back fill required

Full Description

We supply a wide range of manhole rings to suit your needs. This watertight DN1500 wide wall concrete manhole ring measures 1500mm x 250mm deep.

Why purchase an DN1500 wide wall watertight concrete manhole ring?
Tracey Concrete watertight manhole rings are manufactured with a watertight joint which is a superior seal to a tongue and groove joint. The 150mm thick wall eliminates the need for a concrete surround, creating an impermeable chamber.

Why purchase an DN1500 wide wall watertight manhole ring made by Tracey Concrete?
Tracey Concrete is one of the largest precast concrete manufacturers in the UK and Ireland. Tracey Concrete’s success has been built on the consistent quality of their products and efficient delivery.

What are the benefits of DN1500 wide wall watertight concrete manhole rings?
We find our customers like our range of wide wall manhole concrete rings due to their ease of installation, high-specification and design.

Quick and easy to install – reducing costs on site
Watertight on construction – meaning no water will enter your system
Safe lifting system – to ensure the safety of all workers on site
Cost saving – due to it’s ease and timeliness of installation
No concrete back fill required – reducing costs and time

Technical Specification

Type of Joint: Watertight

Lifting Shackle: 3 x 5T

Step Heights (mm): 250mm

Weight (kg): 1925 kg

Diameter: 1500mm

Overall diameter (mm): 1800mm

Wall/Slab Thickness (mm): 150mm

Depth (mm): 250mm

Circumference (mm): 5655mm

Product Details

Diameter (mm): 1500mm

Height (mm):

Weight (kg): 1925 kg

Capacity (litres):
