  • The 12 person One2Clean sewage treatment plant by Graf provides a smart and simple solution for off-mains drainage. This product comes with a pedestrian loading lid, meaning it can be installed in a number of locations in domestic and commercial properties. The pumped outlet allows for flexibility in choosing where to install the tank.

This sewage treatment plant is suitable for use with up to 12 people.
  • The 12 person One2Clean sewage treatment plant by Graf provides a smart and simple solution for off-mains drainage. This product comes with a pedestrian loading lid, meaning it can be installed in a number of locations in domestic and commercial properties. The pumped outlet allows for flexibility in choosing where to install the tank.

This sewage treatment plant is suitable for use with up to 12 people.
1 of 2

12 Person Graf One2Clean Sewage Treatment Plant (Pumped outlet)

Regular price
£4,997.76 (£4,164.80 ex VAT)
Regular price
Sale price
£4,997.76 (£4,164.80 ex VAT)
Est. delivery 7-10 working days
Loading Lid

**FREE COMMISSIONING INCLUDED**

The 12 person One2Clean sewage treatment plant by Graf provides a smart and simple solution for off-mains drainage. This product comes with a pedestrian loading lid, meaning it can be installed in a number of locations in domestic and commercial properties. The pumped outlet allows for flexibility in choosing where to install the tank.

This sewage treatment plant is suitable for use with up to 12 people.

Extended 3 year warranty on product technology and a 10 year warranty on the tank itself.

Highly recommend the Graf External Plastic Cabinet to be purchased with this product.

Free UK mainland delivery

Call 0121 351 3230 to claim your free commissioning with this tank. Terms and conditions apply.

View data sheet here

Claim free commissioning here

Full Description

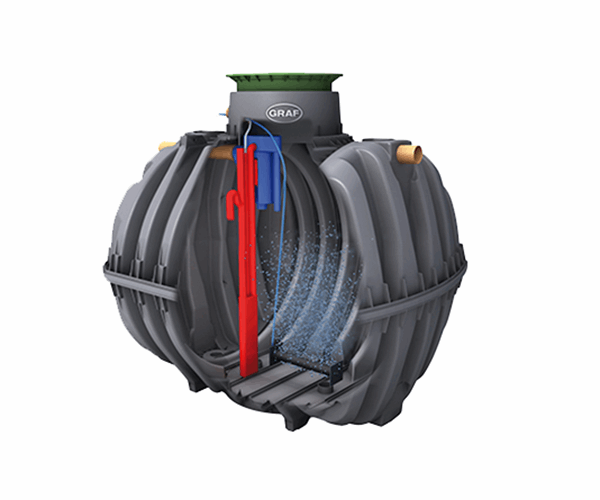

This 12 person One2Clean sewage treatment plant by Graf offers an efficient solution to off-mains effluent treatment. The 12 person tank consists of 2 x 4800l tanks for maximum efficiency. The pumped outlet allows this tank to be installed in a wide number of locations, due to not needing to rely on gravity for flow of effluent.

There are 3 stages to the treatment process; aeration, settling phase and clear water extraction. This ensures that the sewage is treated to a high standard, and is suitable to be discharged safely at the end of the process.
The sewage enters the tank and is filtered using an aeration process. The sludge then settles at the bottom of the tank, and the remaining clear water is extracted and drained in a soakaway or other drainage method. This means that there is minimal sludge to be removed, and only one pumping process is required, meaning maintenance costs are kept low.

Benefits:
- Up to 99% efficiency
- Low-energy consumption
- Free commissioning available
- 3 stage treatment process
- Quiet operation
- Free delivery

There is also a double sludge storage volume which means that more time can pass before a sludge removal is required. The tank is 100% resistant to corrosion which means that its lifespan is optimised, as it is resistant to the elements.

Manufacturer SKU

STP12ONE2CPIPS-GRAF

Technical Specification

Capacity (litres): 9,600 ltr

Weight (kg): 370kg

Height (mm): 2110mm

Width (mm): 1985mm

Length (mm): 5160mm
