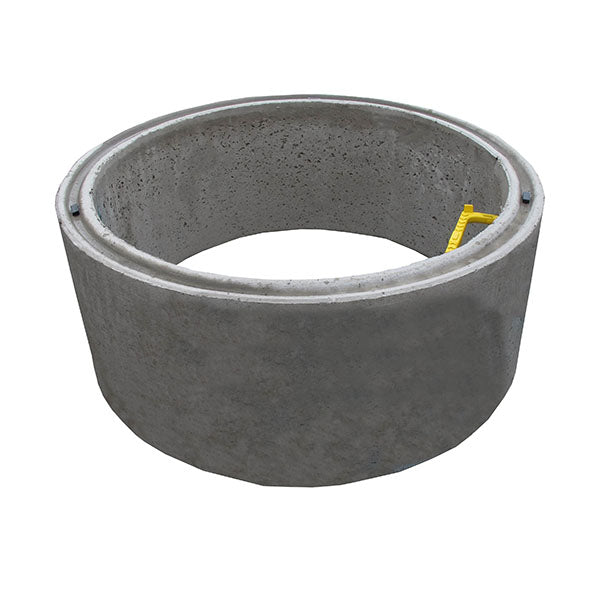

1800mm x 500mm depth Concrete Manhole Ring with Double Step Irons

Est. delivery: 2-3 working days
Request a quote

Features

•Strength and durability Manufactured to BS EN 1917:2002

•Reinforced Standard and wide wall systems available

Benefits:

•High resistance to infiltration and leaking

•Able to meet all design requirements

•Reduced construction time compared to cast in-situ

Applications:

•Stormwater Manholes

•Sewer Manholes

•Pipeline Junctions

Pipeline Direction Changes

Full Description

Made from strong, dense concrete, FP McCann manholes are capable of withstanding infiltration and attack from corrosive environments. Complimentary products such as cover slabs are also available.

Technical Specification

Weight (kg): 1750 kg

Diameter: 1800mm

Lifting Hole Qty/Dia (p/unit) (mm): 3 x 45 dia mm

Barrel Dia (mm): 2030mm

Wall/Slab Thickness (mm): 115mm

Clear opening (mm): 1800mm x 750mm

Product Details

Diameter (mm): 1800mm

Height (mm):

Weight (kg): 1750 kg

Capacity (litres):
