10 Person Graf One2Clean Sewage Treatment Plant (Pumped outlet)

Regular price
£3,816.00 (£3,180.00 ex VAT)
Regular price
Sale price
£3,816.00 (£3,180.00 ex VAT)
Est. delivery 7-10 working days
Loading Lid

 **FREE COMMISSIONING INCLUDED**

The 10 person One2Clean sewage treatment plant by Graf treats effluent to a standard of up to 99%. It is the ideal sewage solution for off-mains drainage in domestic and commercial applications. Available with a pedestrian or vehicle loading lid, this sewage treatment plant can be installed in a wide number of applications. This tank uses a pumped outlet, which allows it to be installed in a greater number of locations.

This sewage treatment plant is suitable for use with up to 10 people.

Extended 3 year warranty on product technology and a 10 year warranty on the tank itself.

Highly recommend the Graf External Plastic Cabinet to be purchased with this product.

Free UK mainland delivery

Call 0121 351 3230 to claim your free commissioning with this tank. Terms and conditions apply.

View data sheet here

Claim free commissioning here

Full Description

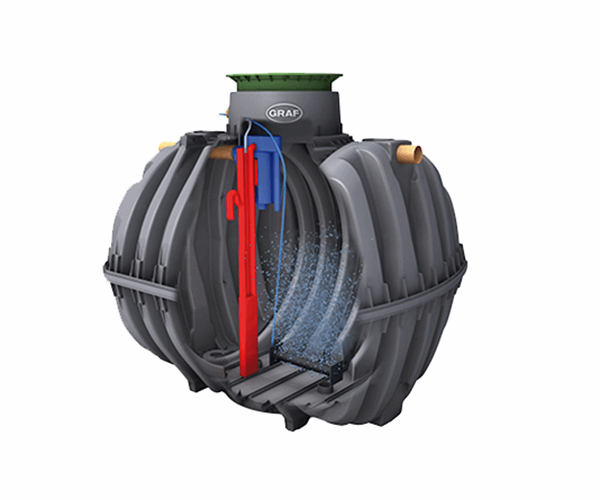

This 10 person One2Clean sewage treatment plant by Graf offers an efficient solution to off-mains effluent treatment. The pumped outlet allows for this product to be installed in a greater number of locations. This is because it does not need to rely on gravity to transport the effluent.

There are 3 stages to the treatment process; aeration, settling phase and clear water extraction. This ensures that the sewage is treated to a high standard, and is suitable to be discharged safely at the end of the process.
The sewage enters the tank and is filtered using an aeration process. The sludge then settles at the bottom of the tank, and the remaining clear water is extracted and drained in a soakaway or other drainage method. This means that there is minimal sludge to be removed, and only one pumping process is required, meaning maintenance costs are kept low.

Benefits:
- Up to 99% efficiency
- Low-energy consumption
- Free commissioning available
- 3 stage treatment process
- Quiet operation
- Free delivery
- Pumped outlet

There is also a double sludge storage volume which means that more time can pass before a sludge removal is required. The tank is 100% resistant to corrosion which means that its lifespan is optimised, as it is resistant to the elements.

Technical Specification

Capacity (litres): 7500l

Weight (kg): 300kg

Height (mm): 1880mm

Width (mm): 1755mm

Length (mm): 5160mm
