Sewage Treatment Plant Sample Chamber

£178.20 (£148.50 ex VAT)
£198.00
£178.20 (£148.50 ex VAT)

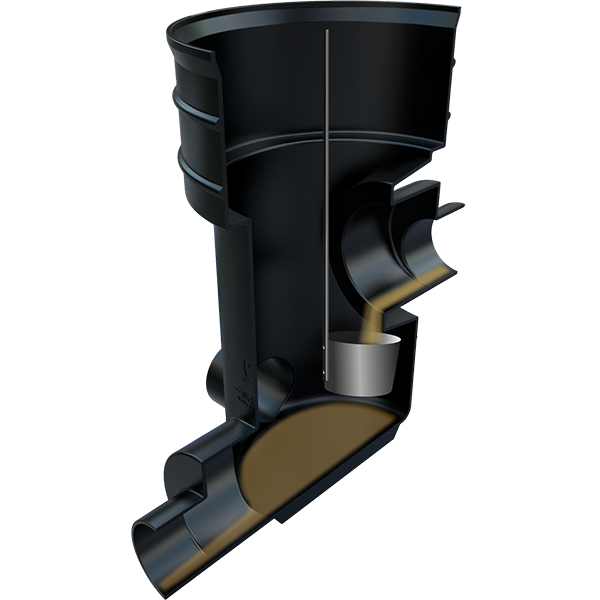

This combined sampling and distribution chamber, is delivered in one piece and ready to install on site.

The sample chamber comes with a choice of 110mm or 160mm main pipe connections and two further 110mm moulded spigots at 90° at the base of the unit.

Full Description

Applications:
Sampling Chamber – Installed after the outlet of a septic tank or sewage treatment plant, to allow necessary sampling, to check the quality of the discharge from the system before it enters the watercourse. The inlet of the sampling chamber must be a minimum of 150mm up from the base of the chamber and also protrude into the chamber a minimum 75mm, to facilitate a sampling vessel/cup.

Distribution Chamber – Provides for the distribution of pre – treated sewerage effluent from Septic Tanks. The chamber outlets when connected, will discharge effluent into and through a designed ‘drainage field’, of perforated pipes, which then percolates into the ground.

See data sheet for more info:

Sampling and Distribution Chamber Data Sheet

Manufacturer SKU

SAMPLECHAMBER-TCOMP

Technical Specification
