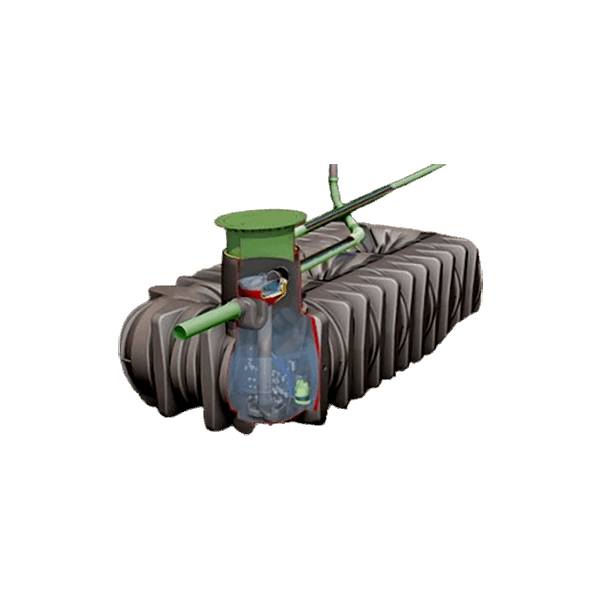

Graf Platin Silentio 10,000 Litre Tank

£6,720.00 (£5,600.00 ex VAT)
£6,720.00 (£5,600.00 ex VAT)
Est. delivery 5-7 working days
Loading Lid

The Platin Silentio Rainwater Harvesting Tank offers an advanced and sustainable solution for collecting and reusing rainwater in both domestic and commercial settings. Designed with a shallow-dig shape, it requires minimal excavation, allowing for faster, easier, and more cost-effective installation.

Constructed from 100% recycled plastic, this eco-friendly system uses award-winning filtration technology to deliver efficient and reliable water management. The Silentio range is particularly effective for properties where the tank and control unit are separated by larger distances—up to 15 metres.

Complete package supplied, ready to install.

Benefits:

  • Made from 100% recycled plastic – a sustainable and eco-friendly product
  • Shallow-dig design for reduced excavation and easier installation
  • Easy backfill – use granular material instead of costly concrete
  • Award-winning internal filter technology for high efficiency
  • Automatic timed jet washing of filter for low maintenance
  • Ultra-quiet system control with automatic water level monitoring
  • Automatic switch-over when water levels are low
  • Control panel displays live water level information
  • Available with pedestrian or vehicle loading lid options
  • FREE delivery and FREE commissioning included

View Datasheet

View Installation Guide

CALL FOR EXPERT ADVICE: 0121 351 3230

Full Description

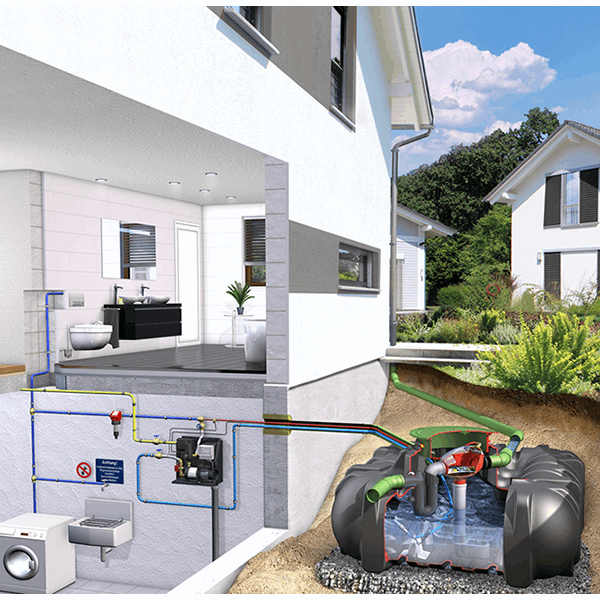

The new Silentio range by Graf offers exceptional water quality for non-potable water uses inside and outside of the home.

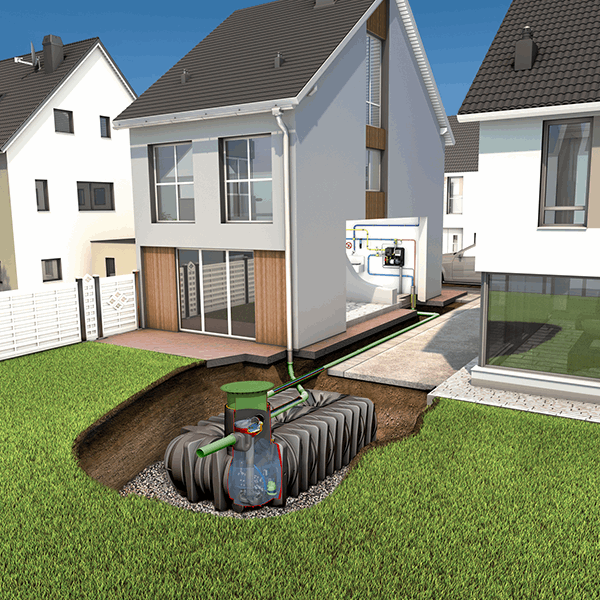

The Platin Silentio range offers a shallow dig solution for the installation of a rainwater harvesting tank. A low excavation depth is required, which makes installing the tank easier and cheaper.

This tank will save you money in many ways. Firstly, by reusing rainwater as a natural resource, you will save money in the long run on your water bills, as well as practising sustainability. Also, during installation, this tank only requires a granular backfill, as opposed to concrete. This will save you up to £60 per cubic metre. It also makes installation much easier. See the installation guide above for more details.

This 10,000 litre Platin Silentio tank is made from 100% recycled plastic. So, not only are you helping the planet by reusing rainwater, the tank itself is made from reusable materials.

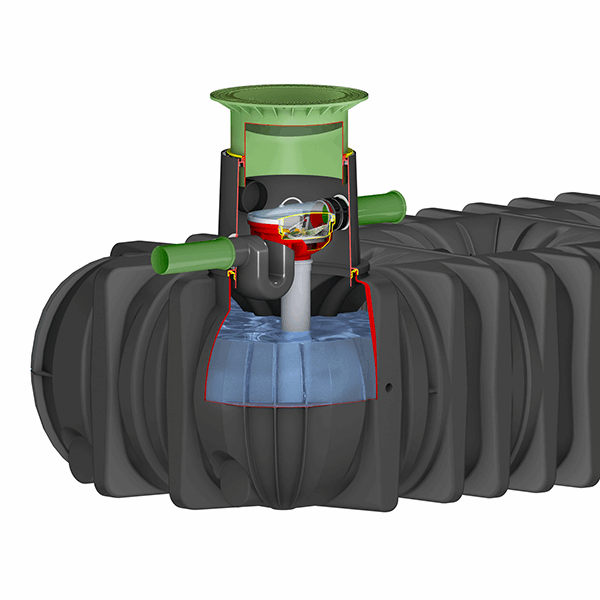

The rainwater filters use efficient self-cleaning technology, which has won awards. You can trust this tank to produce pure, clean water in every use.

Additional benefits:
- The Silentio tank is the only rainwater harvester of its kind to use a domestic external pump unit with an AA air gap in the UK
- Complete package provided
- Telescopic lid
- Fast lead time
- Automatic pumps
- Consistent water supply
- Easy installation

What's included:
1. Underground tank (choice of tanks available, sizes vary according to property type)
2. Maxi Telescopic dome shaft with lid (choice of telescopic lid available, depending on tank location)
3. Filter (Minimax filter supplied in accordance with the type of tank)
4. Floating water intake
5. AA Silentio unit
6. Float sensor (connected from Silentio unit to the underground tank)
7. Reversible flow filter

Manufacturer SKU

RWH10000-G/PSP

Technical Specification

Capacity (litres): 10,000 ltr

Weight (kg): 460kg

Height (mm): 1910mm

Width (mm): 2250mm

Length (mm): 4900mm
