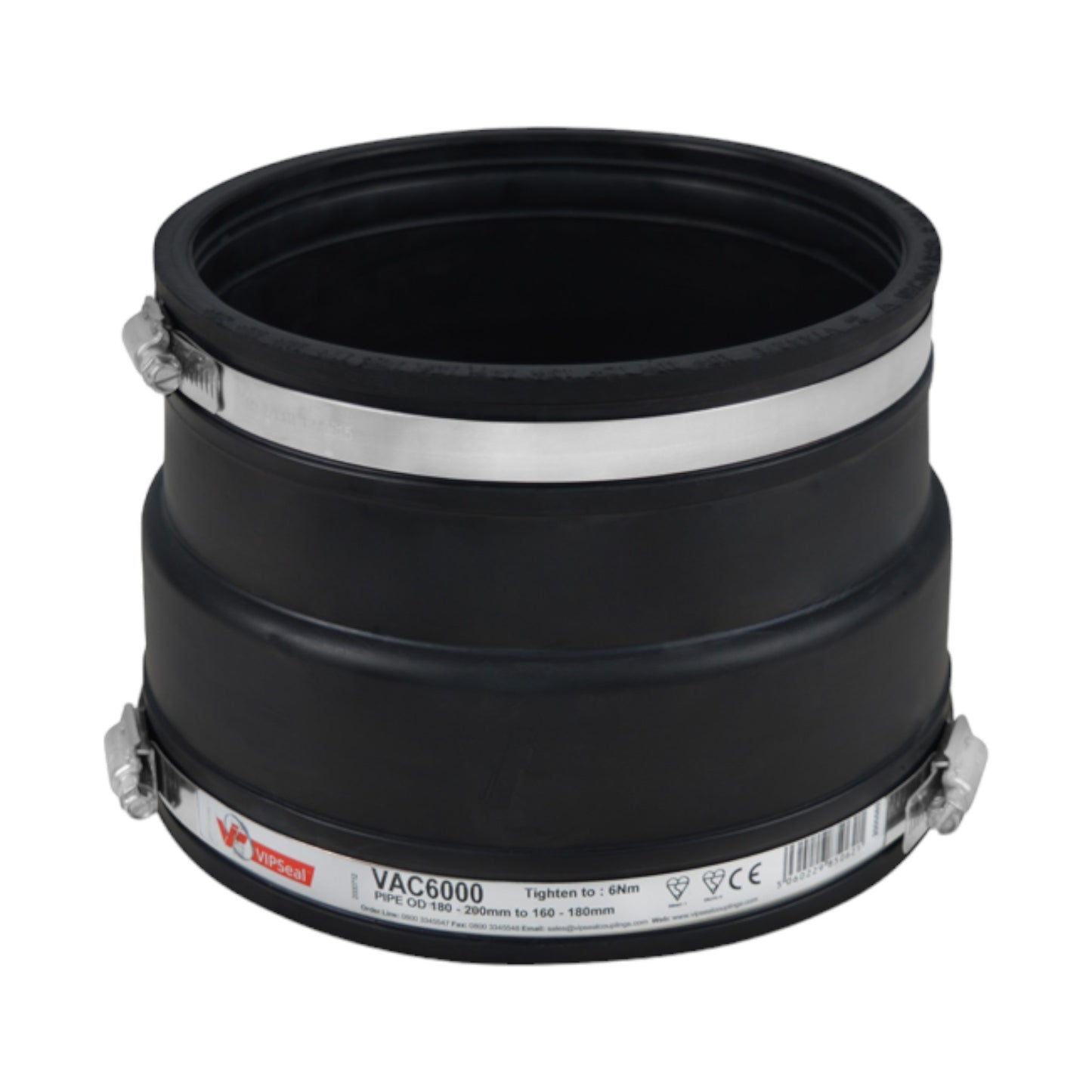

Flexible Coupling 180-200mm / 160-180mm

£16.85 (£14.04 ex VAT)
£16.85 (£14.04 ex VAT)

Shear Banded Couplings are precision-engineered to connect and repair pipes in UK sewer and drainage systems. Built with stainless steel reinforcement and resilient EPDM rubber bodies, they ensure strong, watertight joints that maintain alignment and prevent displacement under shear loads.

Compliant with WIS 4-41-01 and BS EN standards, these couplings offer exceptional reliability and longevity. With a pressure rating of 2.5 bar (36.25 psi), they deliver robust performance across a wide variety of pipe types and diameters.

Compatible Pipe Materials:

  • 150mm Salt Glazed Ware (6”)
  • 150mm Vitrified Clay
  • 150mm Supersleve
  • 150mm Pitch Fibre
  • 150mm Asbestos Cement
  • 150mm Concrete
  • 180mm Ultra-Rib
  • 200mm PVCu
  • 160mm PVCu
  • 150mm Cast Iron (Soil & Drain)
  • 150mm Cast Iron (SMU / Ensign / SML)
  • 150mm Ductile Iron
  • 150mm Stainless Steel
  • 150mm Ultra-Rib

View VAC Data Sheet

CALL FOR EXPERT ADVICE: 0121 351 3230

Full Description

Shear Banded couplings are crafted with precision for connecting and repairing pipes in adopted sewer and drainage applications, as mandated by UK water companies. The stainless steel central band serves as a protective shield for the joint, especially under shear loads, ensuring the alignment of joining pipes and preventing any potential displacement.

Featuring an EPDM body and a Shear Band and Clamp Bands made of Stainless Steel (1.4301 (304)), these couplings hold certifications to meet the standards of WIS 4-41-01 for flexible couplings in gravity sewerage and drainage pipes. Additionally, they are approved according to BS EN 681-1:1996, BS EN 295-4:2013, and BS EN 10088-2:1995.

With a pressure rating of 2.5bar/36.25psi, these couplings are designed to deliver reliable performance in various sewer and drainage scenarios.

Manufacturer SKU

RCAC6000/VIP

Technical Specification

Diameter: 180-200mm / 160-180mm
