• Our Klargester BioDisc models have been designed to cater domestic and commercial sites without access to mains drainage. Engineered to treat wastewater to a very high standard, the Klargester BioDisc offers silent operation, affordable running costs, no odour and a 7-year warranty (terms apply), providing customers for 50 years with confidence in the system performance.
1 1

9 Person Klargester BA-X Biodisc Sewage Treatment Plant w/1250mm inlet (Pumped Outlet)

Est. delivery: 5-7 working days
Request a quote

Celebrating 50 years of BioDisc sewage treatment plants!

Win with Biodisc! In every lid of a Biodisc purchased is a QR code, which can be scanned to win amazing prizes! These include holiday vouchers, shopping vouchers and more!

In addition, all customers who purchase a Klargester Biodisc will automatically be entered into a prize draw to win prizes for retailers such as Just Eat, M&S, and more!

For half a century, Klargester BioDisc has been at the forefront of domestic and commercial sewage treatment, revolutionising the way that wastewater is managed.

Our Klargester BioDisc models have been designed to cater domestic and commercial sites without access to mains drainage. Engineered to treat wastewater to a very high standard, the Klargester BioDisc offers silent operation, affordable running costs, no odour and a 7-year warranty (terms apply), providing customers for 50 years with confidence in the system performance.

FEATURES OF THE KLARGESTER BIODISC

  • The Klargester BioDisc operates without noise or smell
  • Servicing requirements are reduced with very good access
  • No technical or mechanical faults
  • Low energy usage at 1.3 kw/d - approx 10-14 pence per day
  • Low sludge accumulation and sizeable storage capacity
  • Certified to European Standard EN 12566 - Part 3 - Annexe B - Performance Tests

Full Description

KLARGESTER BAX BIODISC
For residential properties without access to mains drainage, the Klargester BioDisc delivers a reliable, effective and ecologically safe solution to your sewage disposal needs.


BAX BioDisc – suitable for 1 house upto 7 bedrooms

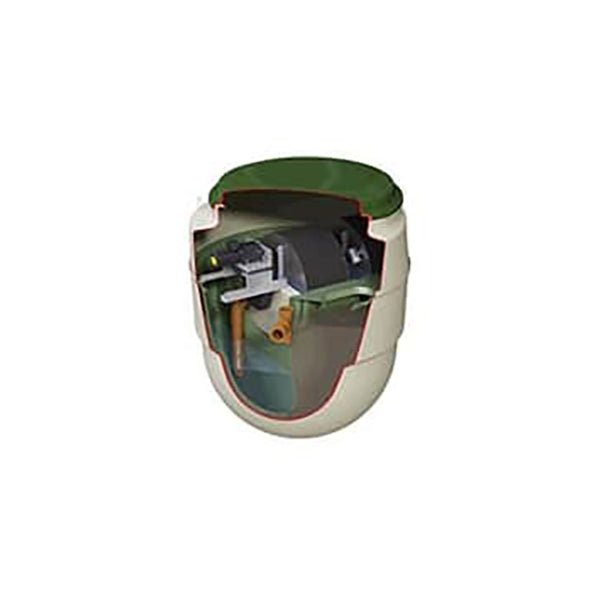

HOW THE KLARGESTER BIODISC WORKS
The Klargester BioDisc is ideal for areas where discharge is to sub-surface irrigation or to a suitable watercourse if permitted. The Rotating Biological Contractor is unique to the BioDisc, and comprises of media discs onto which aerobic micro-organisms, naturally found in sewage, become established. Natural breakdown of sewage can then occur via the ‘breakdown process’:


Wastewater and sewage flows into the primary settlement zone where solids are settled out and retained. This accumulated sludge should be drawn out periodically.
Partially-clarified liquor containing fine suspended solids flows upwards into the first stage Biozone for breaking down by micro-organisms on the RBC.
Suspended solids return to the primary settlement zone and the liquor is transferred to the second stage Biozone for further treatment.
Any solids remaining are settled out in the final settlement tank. The resulting very high quality effluent can be discharged to a watercourse.

Technical Specification

No. of people: 9

Shortname: 9 Person w/1250mm inlet

Weight (kg): 325 kg

Diameter: 1995mm

Outlet: Pumped

Outlet Invert: 1315mm

Model: BA-X

Inlet Invert: 250mm

Daily Flow (m3/day): 1.8m3

Invert Depth Options (mm): 750mm

Product Details

Pumped

Diameter (mm): 1995mm

Height (mm):

Weight (kg): 325 kg

Capacity (litres):
