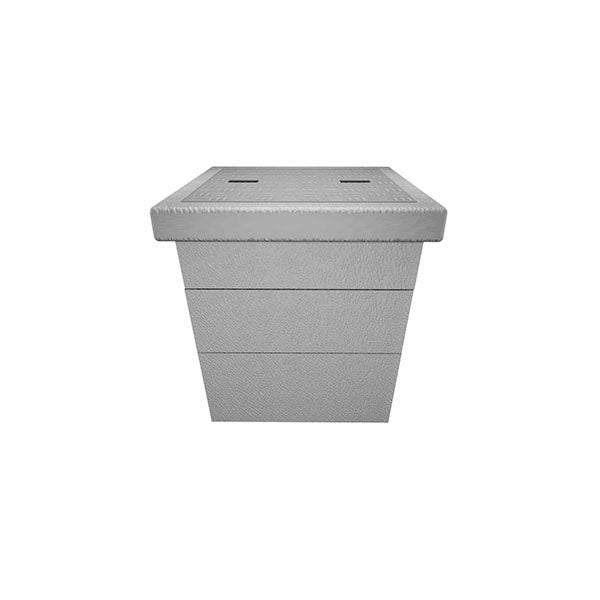

750mm x 600mm x 70mm House Inspection Chamber Frame - FP McCann.

Est. delivery: 2-3 working days
Request a quote

The concrete inspection chambers are economic and versatile and meet the demands of domestic drainage installation. They are easily handled and excavation below ground level is reduced to a minimum. They are available in a variety of depths, with tongue and groove joints.

Full Description

FP McCann’s precast concrete inspection chambers are available in four common sizes: 600 x 450, 750 x 600, 1000 x 675 and 1200 x 750. Manufactured in accordance with BS EN 1917 / BS5911, each section has a tongue and groove joint and can be sealed with a sand and cement mortar or bitumen sealant in the same fashion as a circular manhole and chamber ring. To complete the chamber, FP McCann has a range of covers and ground level components. FP McCann’s frame (also known as a surround) and lid combination is designed to sit flush with the top course, such as tarmac or concrete surfacing or in grassy areas. The lid itself features an anti-slip chequered finish and recessed lifting points to allow removal from the frame by use of standard lifting eyes.

Technical Specification

Weight (kg): 75 kg

Wall/Slab Thickness (mm): 55mm

Depth (mm): 70mm

Width (mm): 600mm

Length (mm): 750mm

Product Details

Diameter (mm):

Height (mm):

Weight (kg): 75 kg

Capacity (litres):
