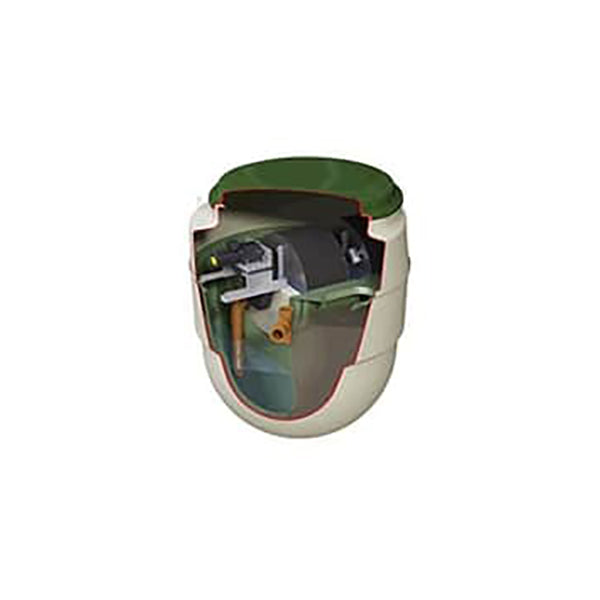

6 Person Klargester BA Biodisc Sewage Treatment Plant w/450mm inlet (Pumped Outlet)

Regular price
£5,350.00 (£4,458.33 ex VAT)
Regular price
Sale price
£5,350.00 (£4,458.33 ex VAT)
Est. delivery: 5-7 working days

The Klargester BioDisc sewage treatment plant provides a reliable, efficient and environmentally safe solution to your sewage disposal needs perfect for domestic dwellings without access to mains drainage.

Features and Benefits

Affordable running costs and maintenance costs
Low noise when in operation and odours free
Certified to European Standard EN - 12566-3
CE marked

Full Description

<li>The <strong>Klargester BioDisc</strong>Êoperates <strong>without noise or smell</strong>
<li>Servicing requirements are <strong>reduced</strong> with <strong>very good access</strong>
<li>No technical or mechanical faults</li>
<strong>Low energy usage</strong> at 1.3 kw/d - approx 10-14 pence per day</li>
<strong>Low sludge accumulation</strong> and sizeable storage capacity</li>
<li>Certified to European Standard EN 12566 - Part 3 - Annexe B - Performance Tests</li>
<li>TheÊ<strong>unique design</strong> of the system means that the Klargester BioDisc¨ is the only packaged sewage treatment system utilitising Rotating Biological Contactor technology for small domestic applications. This process offers inherent cost and performance benefits with a low carbon footprint.</li>
<div class="approved-style"></div>
<div class="approved-style">TheÊKlargester BioDisc has theÊ<strong>lowest running and maintenance costsÊ</strong>of any packaged treatment plant in its class. An important design feature is the drive motor which runs virtually silently, has low power consumption and a significantly greater design life expectancy than a typical compressor. Low running costs, combined with the quality and durability of the equipment, all add up to a significantly lower lifetime cost.</div>KLARGESTER BA BIODISC
For residential properties without access to mains drainage, the Klargester BioDisc delivers a reliable, effective and ecologically safe solution to your sewage disposal needs.

BA BioDisc – suitable for up to 6 population (up to 4 bedrooms)

The Klargester BioDisc is ideal for areas where discharge is to sub-surface irrigation or to a suitable watercourse if permitted. The Rotating Biological Contractor is unique to the BioDisc, and comprises of media discs onto which aerobic micro-organisms, naturally found in sewage, become established. Natural breakdown of sewage can then occur via the ‘breakdown process’:

Wastewater and sewage flows into the primary settlement zone where solids are settled out and retained. This accumulated sludge should be drawn out periodically.
Partially-clarified liquor containing fine suspended solids flows upwards into the first stage Biozone for breaking down by micro-organisms on the RBC.
Suspended solids return to the primary settlement zone and the liquor is transferred to the second stage Biozone for further treatment.
Any solids remaining are settled out in the final settlement tank. The resulting very high quality effluent can be discharged to a watercourse.

Technical Specification

No. of people: 6

Diameter: 1995mm

Outlet: Pumped

Outlet Invert: 835mm

Inlet Invert: 450mm

Outlet Type: Pumped Outlet

Pipework Diameter (mm): 110mm
