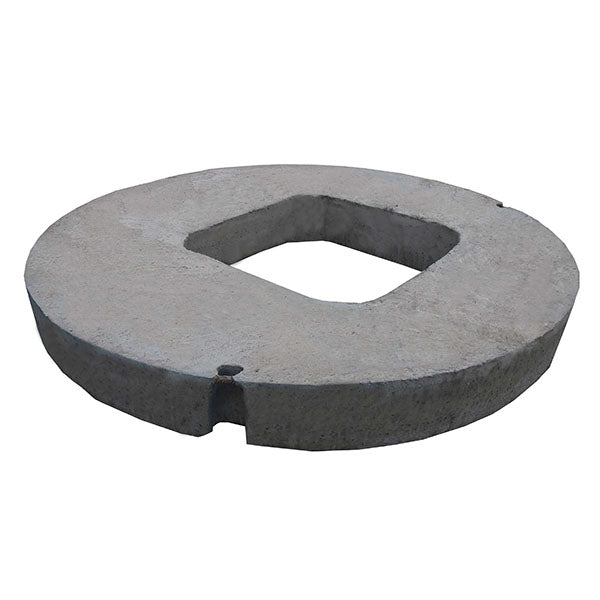

1800mm Concrete Cover Slab 600mm x 600mm square opening

Request a quote

Available in a range of sizes, these heavy-duty, reinforced concrete slabs act as a platform to cap the manhole chamber as well as provide a base for any regulating brickwork prior to finishing with the manhole lid.

Full Description

FP McCann manhole cover slabs are available in sizes DN900 to DN4000. They are heavy duty, reinforced concrete slabs and act as a platform to cap the manhole chmaber as well as to provide a base for any regulating brickwork prior to finishing with the manhole lid. They are also referred to as ‘reducing slabs’ as they reduce the access point opening size into the chamber. Landing slabs in sizes DN1500 to DN3000 are typically used in deeper manholes, limiting the depth to a maximum of 6 metres at any point, providing a safe landing or resting platform at such intervals.

Technical Specification

Weight (kg): 1460 kg

Diameter: 1800mm

Shaft or Chamber Nominal Size (mm): 1800mm

Wall/Slab Thickness (mm): 175mm

Opening Configuration Location: Eccentric

Opening Configuration Size (mm): 600 x 600mm

Outside dia (m): 2070mm

Product Details

Diameter (mm): 1800mm

Height (mm):

Weight (kg): 1460 kg

Capacity (litres):
