10 Person Quantum Sewage Treatment Plant (Pumped outlet)

£2,515.00 (£2,095.83 ex VAT)
£2,515.00 (£2,095.83 ex VAT)
Est. delivery 5 -7 working days

The Quantum 10 Person Sewage Treatment Plant by WTE delivers exceptional wastewater treatment performance within a compact and robust design. Using the Activated Sludge Process (ASP), this advanced system efficiently treats sewage to produce high-quality, clean effluent suitable for safe environmental discharge.

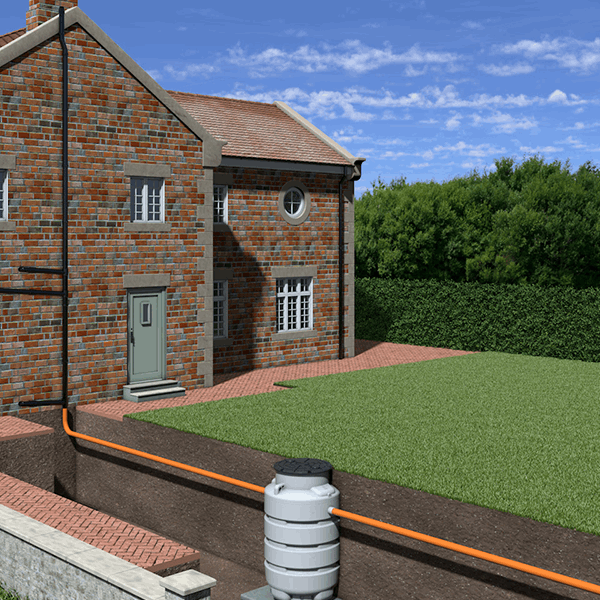

Supplied with a pumped outlet, this model provides greater flexibility for installation, allowing the discharge to be directed to higher ground levels or longer distances where a gravity system may not be suitable.

Engineered for reliability and efficiency, the Quantum range offers an ultra-low-cost solution without compromising on performance. It is the most compact treatment plant on the UK market—approximately one-fifth the size of comparable systems. Fully aerobic, the Quantum ensures that wastewater is oxygenated immediately upon entry, eliminating unpleasant odours and promoting effective biological breakdown.

Benefits:

  • Cost-effective and energy-efficient design
  • Compact footprint – ideal for restricted sites
  • No odour during operation
  • Low noise levels
  • Low electricity demand
  • Certified to EN 12566-3
  • Adjustable treatment process for optimal performance

View Datasheet

20 YEAR WARRANTY – View Details

View CE Certificate

FREE DELIVERY

Full Description

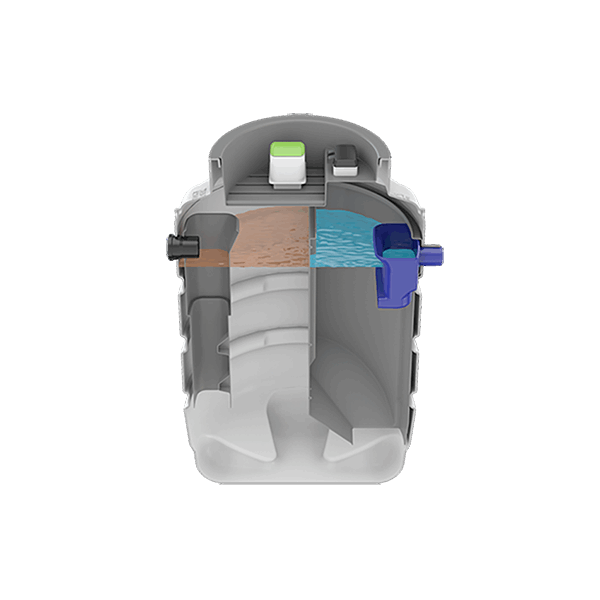

This low-cost 10 person Quantum sewage treatment plant by WTE offers an efficient 3 stage process to effluent treatment.

Stage 1 - Wastewater enters the Vibro Screen. Here, coarse air bubbles physically break down solid matter. It also acts as a buffer for any non-degradable material from entering into the system.

Stage 2 - The mixture then enters the Biozone. This is where the bacteria digests the pollutants in the water. There is a constant oxygen supply, which ensures proper circulation and treatment.

Stage 3 - The liquid then makes its way into the Final Settlement Tank. Here, it is separated into clear, treated effluent and sludge. The treated wastewater is then able to be discharged out of the tank.

Another major benefit of the Quantum sewage treatment plant is that it can be adjusted to control the aeration within the tank. This means that it can function differently depending of the amount of use.

Benefits:
- Low-cost
- Ultra compact
- No odour
- Low noise
- Low electricity demand
- Adjustable treatment process
- CE marked
- EN 12566-3 certified

Manufacturer SKU

STP10QIPS-WTE

Technical Specification

Motor Rating (watts): 75w

Weight (kg): 125kg

Height (mm): 2000mm

Diameter: 1500mm

Material: HDPE

Inlet Invert: 550mm

Outlet Type: Pumped outlet

Installation Depth (mm): 2000mm
