10 Person Marsh Ensign Ultra Sewage Treatment Plant (Gravity)

Regular price
£2,744.00 (£2,286.67 ex VAT)
Regular price
Sale price
£2,744.00 (£2,286.67 ex VAT)
Est. delivery: 5-7 working days

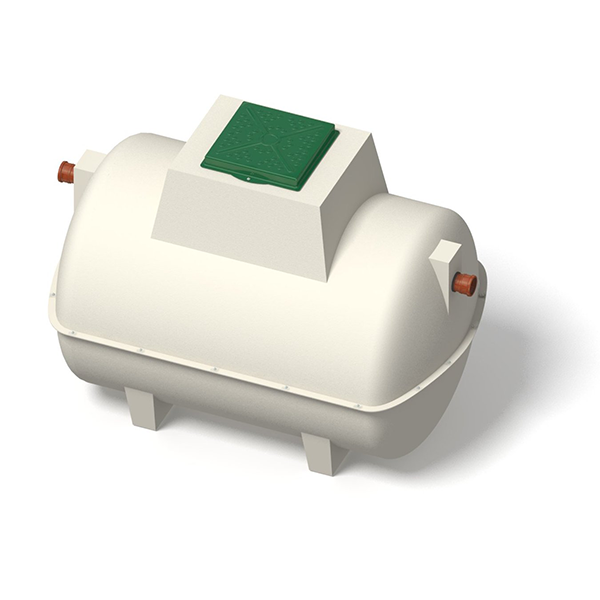

Marsh Ensign Ultra Sewage Treatment Plant

This sewage treatment plant comes with a gravity outlet and is suitable for dwellings with up to 10 people or a 6 bedroom house. Marsh sewage treatment plants are widely regarded as the most efficient, reliable and economical domestic systems on the market.

    Benefits & Features:

    • Inlet with 'Forsheda seal '
    • Primary settlement chamber
    • Aeration chamber
    • Advanced compressor with alarm (Ensign: Ultra units only)
    • Compressor housing internal or external options available
    • RCD/Electrical connection (Ensign: Ultra units only)
    • PVC pressure pipe/diffuser(s)
    • Bio-media
    • Stainless steel mesh
    • Final settlement chamber
    • 32mm sludge return
    • Unique Polylok tertiary filter (Ensign: Ultra units only)
    • Outlet with 'Forsheda seal '
    • Impermeable lid
    • Integral lifting eyes
    • Stabilising feet
    • Unique 'keying-in ' lip


    Rest assured that our Marsh sewage treatment plants come with a 25-year structural warranty and have a 50-year design life.

    Installation Service:

    If required, we can also provide you with an installation service at an additional cost (location dependent). Contact us on 0121 351 3230 to find out more.

    Full Description

    Why choose the Marsh Ensign Sewage Treatment Plant?

    If your property is unable to connect to the mains sewerage infrastructure, your most cost-effective and environmentally friendly “off mains” option is a packaged sewage treatment plant. In basic terms, a sewage treatment plant is a below-ground tank which treats the incoming effluent to an environmentally acceptable quality. This treated water can then be legally discharged to flowing surface waters or in-ground soakaway following applicable exemptions or consents.

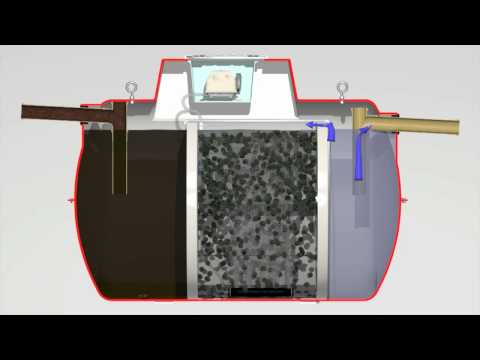

    The Marsh Ensign Sewage Treatment Plant is an excellent choice. Notwithstanding the anaerobic absorption occurring in the essential settlement tank (as septic tanks) the Ensign unit permits the cleared up water to go into a second “air circulation” chamber where it is dealt with to expel the broken up constituents. Here oxygen-consuming microscopic organisms, upheld by diffused air and versatile media, guarantee full treatment is accomplished before the treated emanating (and ‘sloughed off’ microscopic organisms) stream to the last settlement chamber before release. This plant treats effluent to British and European Standards to allow it to be discharged back into the watercourse whilst reaching national consent standards. Our tanks can be manufactured with either a gravity or pumped outlet to meet your site requirements.

    Our Ensign domestic sewage treatment plant comes with lifting eyes to make unloading and installation faster and safer. They have also been designed to self-level on the base and use unique pipe connections to ensure the installation is undertaken efficiently and correctly.

    What are the benefits of the Marsh Ensign Sewage Treatment Plant?

    We find our customers like the Ensign range due to its ease of installation, reliability, and cost-effective operation and maintenance.

    • No moving parts
    • Low running and maintenance costs
    • Faster and safer to install due to lifting eye
    • Tested and certified to BSEN12566-3
    • 50-year design life
    • 25-year structural guarantee

    What size of Sewage Treatment Plant should you choose?

    This sewage treatment plant is suitable for 10 people or a 6 bedroom house.

    If you are unsure of what size is required, please feel free to call us or view our size guide here.

    Our sewage treatment plant installation service
    If required, we can also provide a complete package where we will supply and install your sewage treatment plant at an additional cost. Our installation service is dependent on your location. Contact our team of specialists on 0121 351 3230 to find out more.

    Technical Specification

    Outlet Diameter (mm): 110mm

    No. of people: 10

    Height (mm): 1935mm

    Outlet: Gravity

    Outlet Invert: 625mm

    Inlet Invert: 550mm

    Width (mm): 1650mm

    Length (mm): 2602mm
