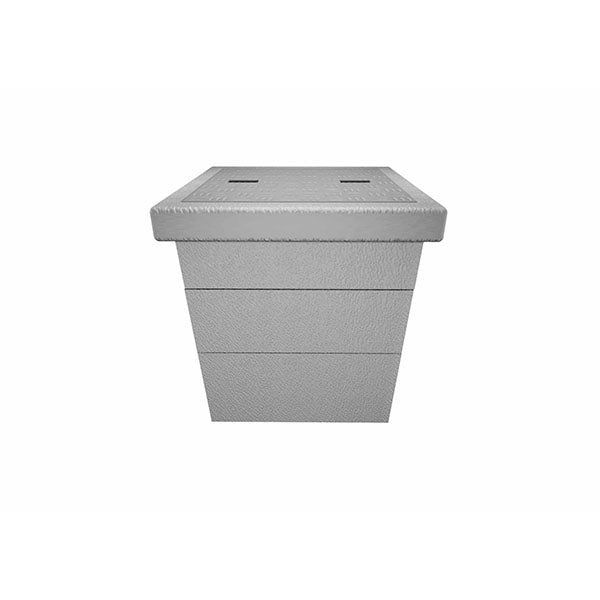

1200mmx 750mm x 150mm House Inspection Chamber Section - FP McCann.

Est. delivery: 2-3 working days
Request a quote

FP McCann House Inspection Chamber Section is installed at the property line of a building. It allows to access the sanitary or storm sewers. Manufactured from concrete to withstand heavy load and external climatic conditions. It can be joined easily with bituminous or butyl compounds.

Features & Benefits

Provides a watertight seal
Tongue and groove joint for stacking
Can be sealed with a sand and cement mortar or bitumen sealant

Full Description

FP McCann’s precast concrete inspection chambers are available in four common sizes: 600 x 450, 750 x 600, 1000 x 675 and 1200 x 750. Manufactured in accordance with BS EN 1917 / BS5911, each section has a tongue and groove joint and can be sealed with a sand and cement mortar or bitumen sealant in the same fashion as a circular manhole and chamber ring. To complete the chamber, FP McCann has a range of covers and ground level components. FP McCann’s frame (also known as a surround) and lid combination is designed to sit flush with the top course, such as tarmac or concrete surfacing or in grassy areas. The lid itself features an anti-slip chequered finish and recessed lifting points to allow removal from the frame by use of standard lifting eyes.

Technical Specification

Weight (kg): 120 kg

Wall/Slab Thickness (mm): 75mm

Product Details

Diameter (mm):

Height (mm):

Weight (kg): 120 kg

Capacity (litres):
