12 Person Marsh Ensign Shallow Sewage Treatment Plant (Pumped Outlet)

Regular price
£4,289.99 (£3,574.99 ex VAT)
Regular price
£5,159.00
Sale price
£4,289.99 (£3,574.99 ex VAT)
Est. delivery: 5-7 working days

Features:

  • Tested to BSEN12566:3 and CE-marked to ensure compliance with latest environmental and Building Regulations requirements
  • Class-leading effluent quality of 11.5:19.2:8.4 (BOD:SS:NH4 ) ensures discharges well within national consent standards
  • Three chamber system correctly sized for separation and retention of solids improves final effluent quality
  • Standard or shallow options enable suitability for all site conditions (including driveways - subject to plinth/surround to prevent superimposed loadings)
  • Shallow option ideal for groundworks involving bedrock or high water table as the low profile allows for safe, cost effective installation
  • Low energy compressors ensure minimal running, maintenance and servicing costs
  • High specification bio-media (310m3 per m2 ) and membrane diffusers ensure even circulation to eliminate 'dead spots'
  • Internal recirculation (from final to primary chamber) continues treatment process to provide higher effluent quality whilst balancing flow over 24 hour period or periods of intermittent use
  • Integral lifting eyes for improved on-site handling
  • Unique 'keying-in ' lip to assist anchoring into granular or concrete surround
  • Optional extras include patented Polylok filter to further reduce suspended solids and extend life of drainage field; extensions for deep installations; pumped outlets for sites with adverse levels; and many more

Full Description

Package Sewage Treatment Plant’s (or PSTP’s) are regularly an appropriate choice where groundwater in the vicinity of the environment is powerless, seepage field permeation qualities are prohibitive, or direct release to waterway or surface water sewer is the preferred release technique.

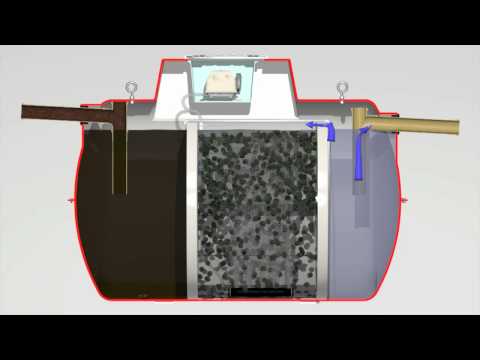

Notwithstanding the anaerobic absorption occurring in the essential settlement tank (as septic tanks) the Ensign unit permits the cleared up water to go into a second “air circulation” chamber where it is dealt with to expel the broken up constituents. Here oxygen consuming microscopic organisms, upheld by diffused air and versatile media, guarantee full treatment is accomplished before the treated emanating (and ‘sloughed off’ microscopic organisms) stream to a last settlement chamber before release.

Technical Specification

No. of people: 12

Height (mm): 1600mm

Outlet: Pumped

Outlet Invert: 575mm

Inlet Invert: 500mm

Width (mm): 1912mm

Length (mm): 2860mm

Installation Service

We can also offer an installation service for our stormwater attenuation, rainwater harvesting, water storage and sewage treatment solutions. Get in touch here.

Contact Us

Our team of experts are available and ready to speak to you. You can contact us or call us directly on 0121 351 3230. Available Mon-Friday 8am-5pm.

Further questions?

Our team of specialists are here to help. We install many of our products so can provide real-world advice. We also offer a free take-off service if required.
