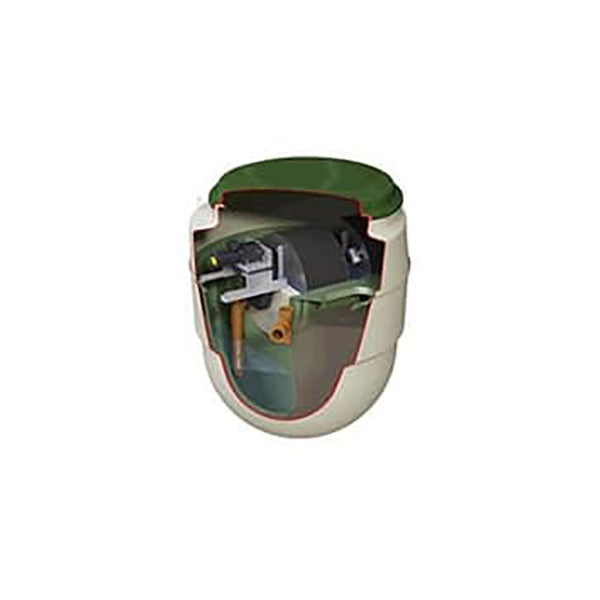

12 Person Klargester BB Biodisc Sewage Treatment Plant w/450mm inlet (Pumped Outlet)

Regular price
£6,698.00 (£5,581.67 ex VAT)
Regular price
Sale price
£6,698.00 (£5,581.67 ex VAT)
Est. delivery: 5-7 working days

Celebrating 50 years of BioDisc sewage treatment plants!

Win with Biodisc! In every lid of a Biodisc purchased is a QR code, which can be scanned to win amazing prizes! These include holiday vouchers, shopping vouchers and more!

In addition, all customers who purchase a Klargester Biodisc will automatically be entered into a prize draw to win prizes for retailers such as Just Eat, M&S, and more!

For half a century, Klargester BioDisc has been at the forefront of domestic and commercial sewage treatment, revolutionising the way that wastewater is managed.

Our Klargester BioDisc models have been designed to cater domestic and commercial sites without access to mains drainage. Engineered to treat wastewater to a very high standard, the Klargester BioDisc offers silent operation, affordable running costs, no odour and a 7-year warranty (terms apply), providing customers for 50 years with confidence in the system performance.

Unit Size : BB

Population Equivalent : 1 House up to 9 bedrooms Specification:
Model: BB
Population Equivalent (Standard Flow): 12
Maximum Daily BOD (kg): 0.72
Maximum Daily Flow (m3): 2.4
Diameter (mm): 1995
Invert Depth Options (mm): 450
Depth Below Inlet Invert (mm): 1400
Outlet Invert Depth (mm): 1315
Overall Height (mm) Depending on Invert: 2160
Height to Rim Of Cover (mm) Depending on Invert: 1945
Empty Weight (Kg): 310
Standard Power Supply: 1 phase
Motor Rating (Watts): 50
Full Load Current 1 Phase (amps): 0.51
Sludge Return Pump Rating (watts): 250


  • The Klargester BioDisc operates without noise or smell
  • Servicing requirements are reduced with very good access
  • No technical or mechanical faults
  • Low energy usage at 1.3 kw/d - approx 10-14 pence per day
  • Low sludge accumulation and sizeable storage capacity
  • Certified to European Standard EN 12566 - Part 3 - Annexe B - Performance Tests
  • The unique design of the system means that the Klargester BioDisc¶ù is the only packaged sewage treatment system utilitising Rotating Biological Contactor technology for small domestic applications. This process offers inherent cost and performance benefits with a low carbon footprint.

The Klargester BioDisc has the lowest running and maintenance costs of any packaged treatment plant in its class. An important design feature is the drive motor which runs virtually silently, has low power consumption and a significantly greater design life expectancy than a typical compressor. Low running costs, combined with the quality and durability of the equipment, all add up to a significantly lower lifetime cost.

Full Description

For residential properties without access to mains drainage, the Klargester BioDisc delivers a reliable, effective and ecologically safe solution to your sewage disposal needs.

BB BioDisc – suitable for 1 house upto 8 bedrooms

The Klargester BioDisc is ideal for areas where discharge is to sub-surface irrigation or to a suitable watercourse if permitted. The Rotating Biological Contractor is unique to the BioDisc, and comprises of media discs onto which aerobic micro-organisms, naturally found in sewage, become established. Natural breakdown of sewage can then occur via the ‘breakdown process’:

Wastewater and sewage flows into the primary settlement zone where solids are settled out and retained. This accumulated sludge should be drawn out periodically.
Partially-clarified liquor containing fine suspended solids flows upwards into the first stage Biozone for breaking down by micro-organisms on the RBC.
Suspended solids return to the primary settlement zone and the liquor is transferred to the second stage Biozone for further treatment.
Any solids remaining are settled out in the final settlement tank. The resulting very high quality effluent can be discharged to a watercourse.

Technical Specification

No. of people: 12

Outlet: Pumped

Inlet Invert: 450mm
