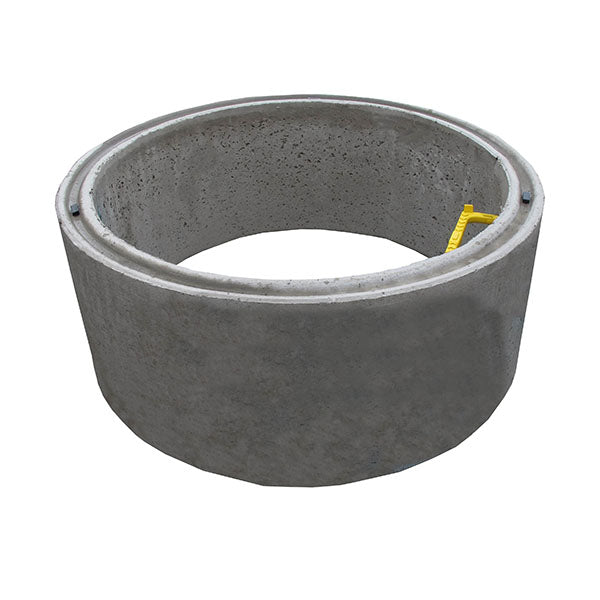

1800mm x 1000mm depth Concrete Manhole Ring with Double Step Irons
Est. delivery: 2-3 working days Request a quoteFeatures
•Strength and durability Manufactured to BS EN 1917:2002
•Reinforced Standard and wide wall systems available
Benefits:
•High resistance to infiltration and leaking
•Able to meet all design requirements
•Reduced construction time compared to cast in-situ
Applications:
•Stormwater Manholes
•Sewer Manholes
•Pipeline Junctions
Pipeline Direction Changes
Share
Full Description
Full Description
Technical Specification
Technical Specification
Weight (kg): 1750 kg
Diameter: 1800mm
Lifting Hole Qty/Dia (p/unit) (mm): 4 x 45 dia mm
Barrel Dia (mm): 2030mm
Wall/Slab Thickness (mm): 115mm
Clear opening (mm): 1800 x 500
Product Details
Product Details
Diameter (mm): 1800mm
Height (mm):
Weight (kg): 1750 kg
Capacity (litres):
