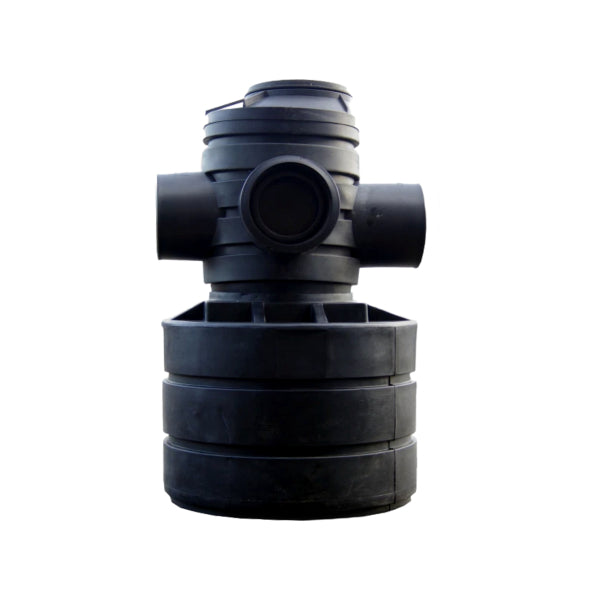

NSB4.5 Geoceptor Bypass Separator 2500 sqm

£1,231.20 (£1,026.00 ex VAT)
£1,231.20 (£1,026.00 ex VAT)
Est. delivery 7-10 working days

Oaklands Environmental provide a compact and lightweight range of bypass separators, designed specifically for separating hydrocarbons and silts from surface water. Available in 8 sizes and suitable within a drainage area of up to 10,000 square metres. The removable filter located on the top of the unit provides access for cleaning purposes and can replaced needed.

The NSB4.5 Bypass separator is suitable to be installed in drainage areas up to 2500 sqm.

Class 1 Bypass Separator

Key Applications:

  • Lightly contaminated commercial areas
  • Surface car park areas
  • Roadways

    NSB4.5 Data Sheet

    Delivery to England mainland and Wales only.

    Full Description

    Oaklands Environmental bypass separators offer the ideal solution for limiting high levels of hydrocarbons in rainwater. Tried and tested for 18 months at a prominent European facility, they are proven to reduce hydrocarbons in surface water less than 1 mg/liter. This bypass separator range is an excellent choice for areas with an acceptable or low risk of contamination.

    Evaluating hydrocarbon levels in rainwater is crucial for gauging environmental quality and understanding the impact of human activities on the water cycle. High levels of hydrocarbon concentration in rainwater can lead to negative ecological consequences. Improving water quality eliminates risk of damaging ecosystems and promotes sustainable water management.

    Key Benefits:

    - Easy to install
    - Durable, rotationally molded HDPE
    - Prevention of contamination
    - Protects ecosystems
    - Long term cost-savings
    - Environmental compliance

    In summary a bypass separator is an important component in effective stormwater management. Installing one ensures compliance with environmental regulation by limiting the levels of hydrocarbons and silts in natural bodies of water. Improving water quality also protects ecosystems and promotes sustainable water management.

    Technical Specification

    Height (mm): 1965

    Diameter: 1260

    Product Details: Nominal Size (mm) : 4.5 Hydrocarbon retention (ltre) : 67.5

    Material: Polyethylene, HDPE
